External Power 6-7
(-40q to 70q C). Locate the enclosure under an awning or other
structure to prevent direct sun exposure. For indoor installation,
mount the power supply inside an enclosure or in a location that
prevents tampering or potential damage from occurring.
Note: ADS recommends mounting the power supply and
the ExPAC in the same enclosure or in close proximity.
The power supply is designed for mounting on a 35- x 7.5-mm DIN
rail in the following way:
1. Notice the inset on the back of the power supply that includes a
wedge at the top and a small notch at the bottom to secure the
power supply to the DIN rail. Slide the top edge of the DIN
rail up into the top wedge on the back of the power supply.

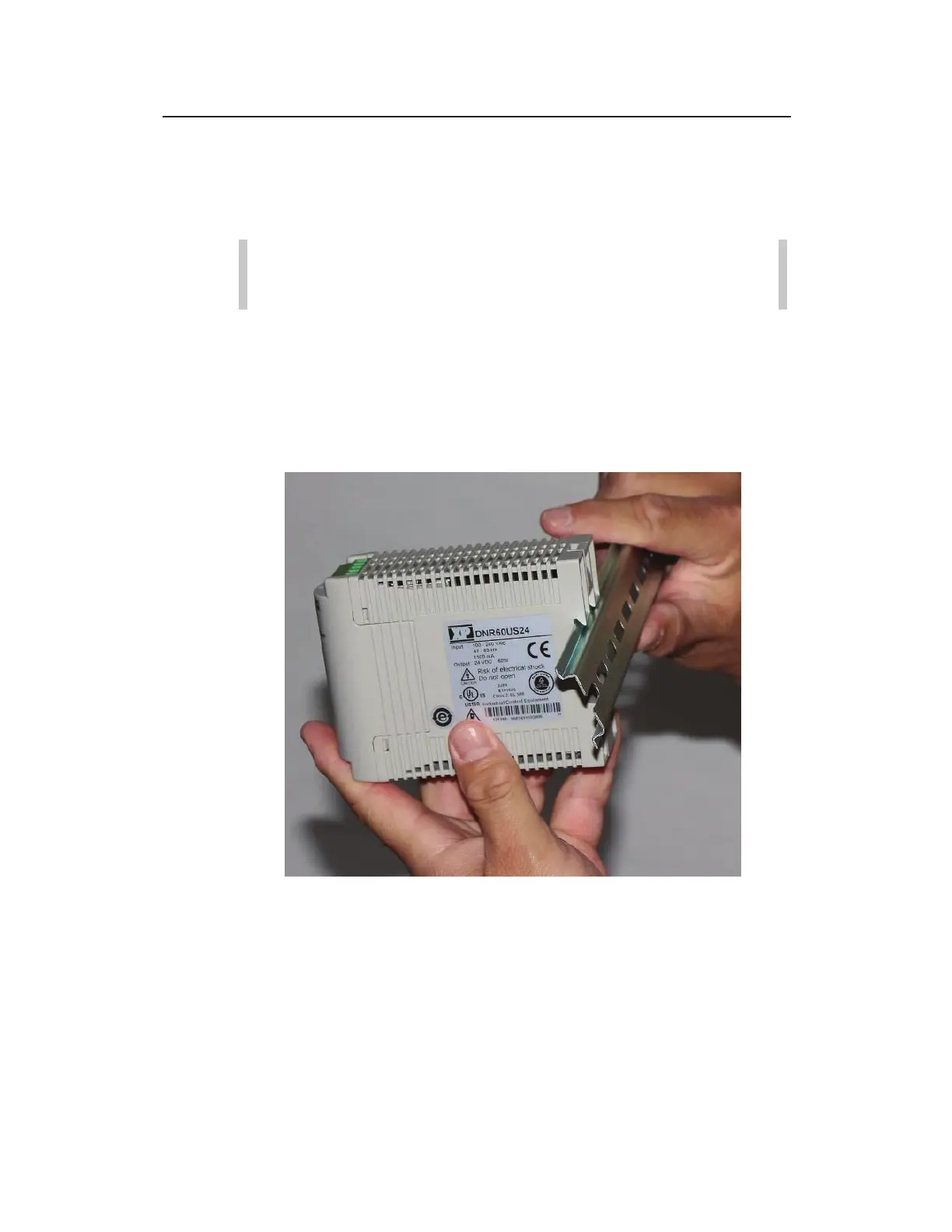

Sliding the top edge of the DIN rail into the wedge on the back of the power
supply
2. Notice the sliding tab running down the middle of the back of
the power supply. Press down on that tab to slide the tab down
vertically. You also can slide the tab down using the end of a
flathead screwdriver inserted into a slot on the tab located at
the top of the power supply. Hold the tab down to prevent the
