Sensor Installation and Connection 5-13

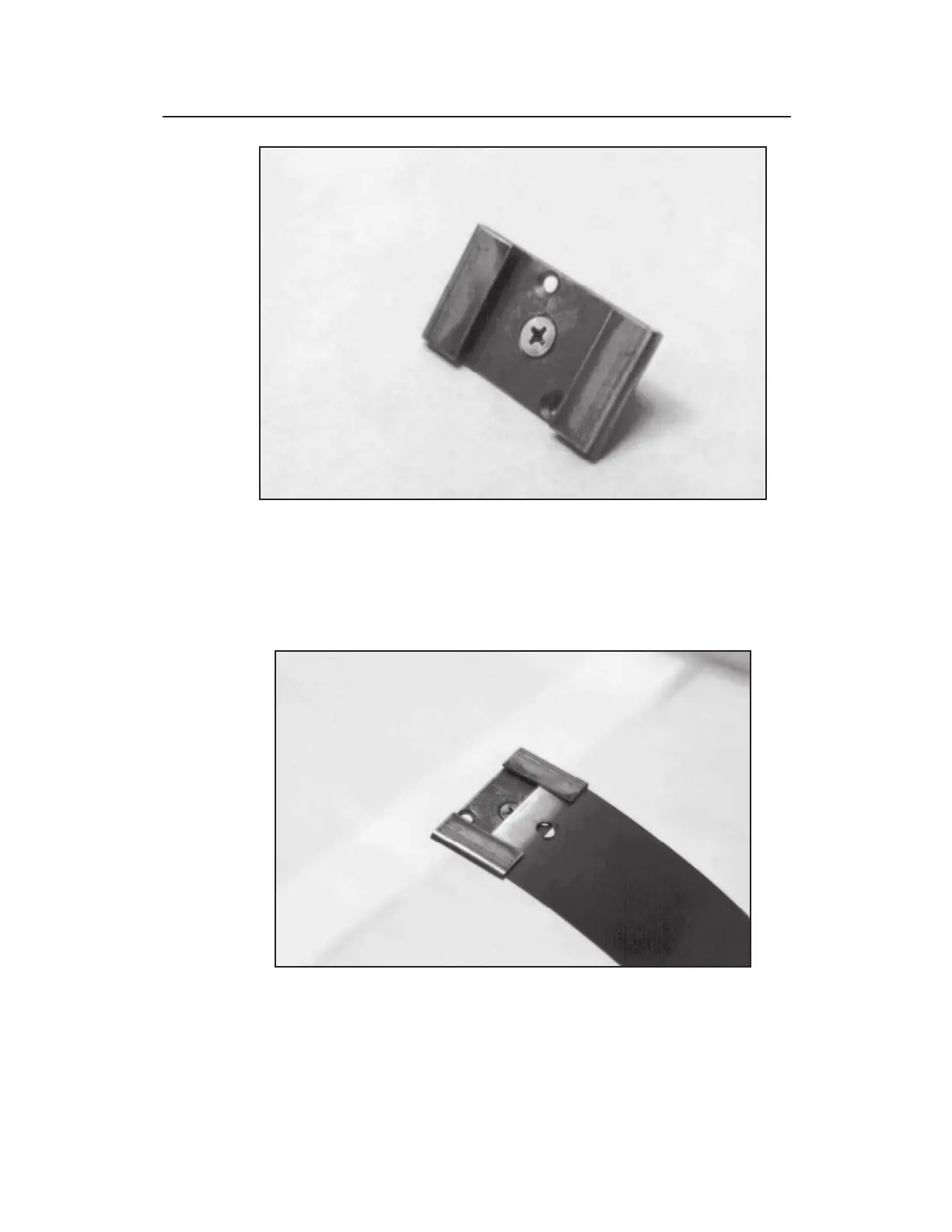

Ring stabilizer with spreader mechanism screw
2. Slide the open end of the ring (end without the welded metal
band) through the flanges in the ring stabilizer, making sure the
flanges face the outside of the ring and the spreader mechanism
screw faces the inside of the ring.
Sliding the ring stabilizer onto the ring
3. Slide the ring stabilizer all the way around the ring until it is
about 4 inches (102 mm) from the welded metal band at the
other end of the ring.
