5-36 ADS TRITON+ Manual

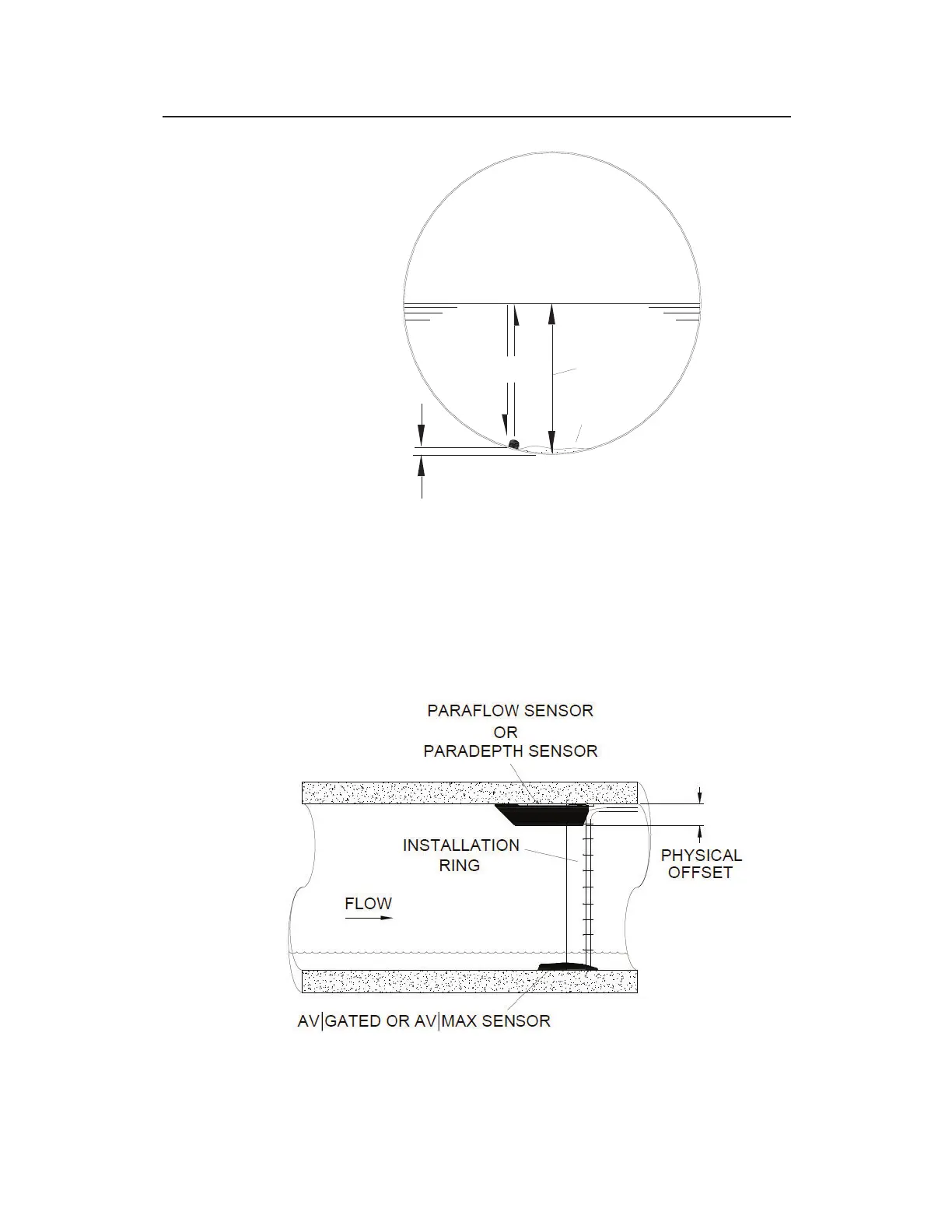

Illustrating the method for determining the physical offset for a rotated
AV|Max/Peak Combo sensor
ParaDepth/ParaFlow Physical Offset Measure the
distance from the crown (top) of the pipe to the face of the
sensor to determine the physical offset. Typical offsets
range from 2.63 to 2.75 inches (67 to 70 mm).
Physical Offset of the ParaDepth/ParaFlow Sensor
SILT
WATER SURFACE
PHYSICAL
OFFSET
CENTER PIPE
DEPTH
DISTANCE FROM
SENSOR NOSE
TO SURFACE
*
*
