5-46 ADS TRITON+ Manual

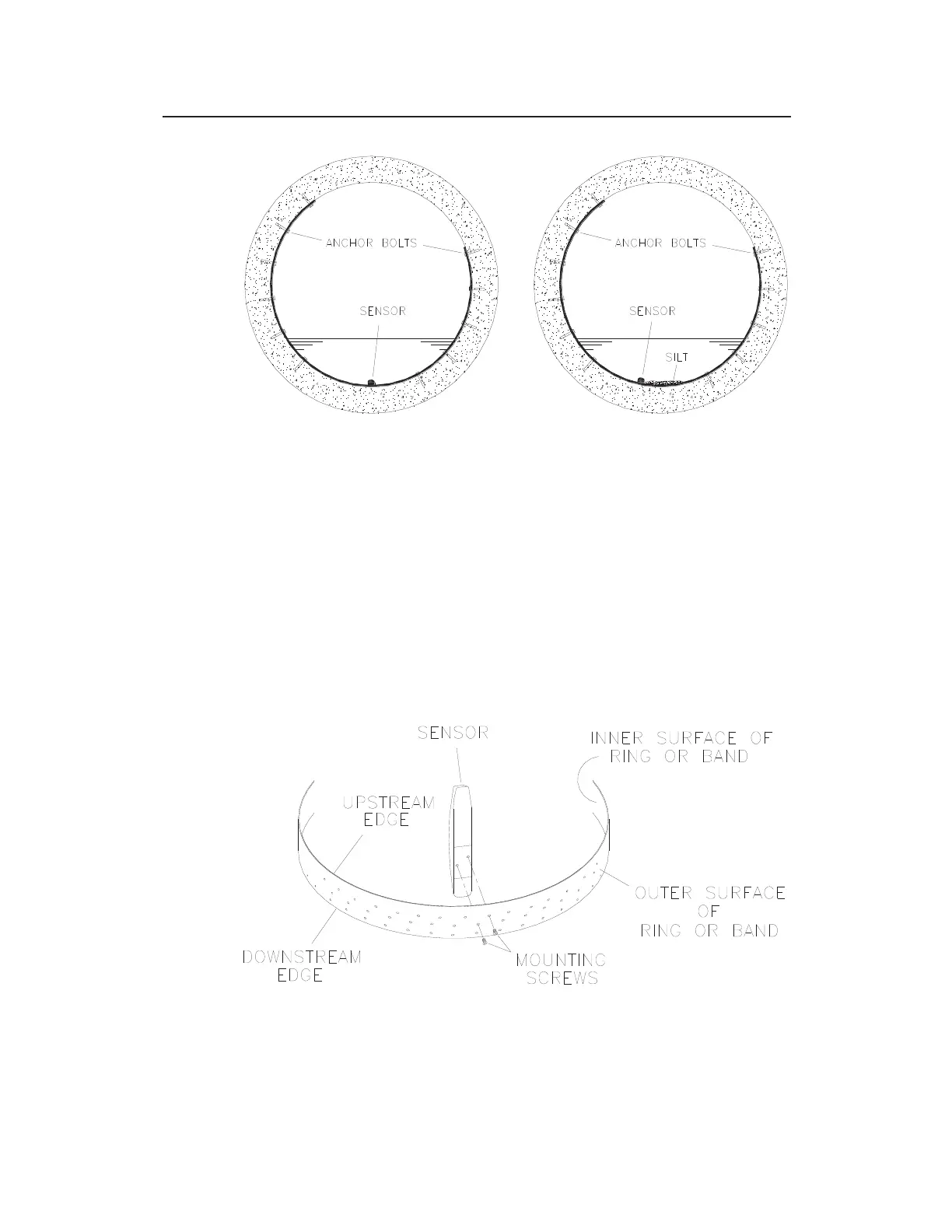

(Left) AV|Gated, AV|Max or Peak Combo sensor mounted using a ¾-band
mount in the pipe without silt. (Right) AV|Gated, AV|Max or Peak Combo
sensor only mounted in pipe with silt.
3. (applies only when mounting the AV|Gated, AV|Max, or Peak
Combo sensor within +/- 5 degrees of the 6:00 position.)
Mount the sensor onto the inside of the band with two M3 x
10-mm countersink screws, making sure the blunt end (i.e.,
nose) of the sensor is facing the upstream edge of the ring
(edge opposite cable tie holes). If mounting holes do not exist
on the band at or near the desired mounting location for the
sensor, drill holes in the band using a 7/32-inch (3-mm) drill
bit.
Attaching Sensor to band
4. (applies only to AV|Gated, AV|Max orPeak Combo when
mounting the sensor between 15 and 30 degrees up the side of
