Sensor Installation and Connection 5-89

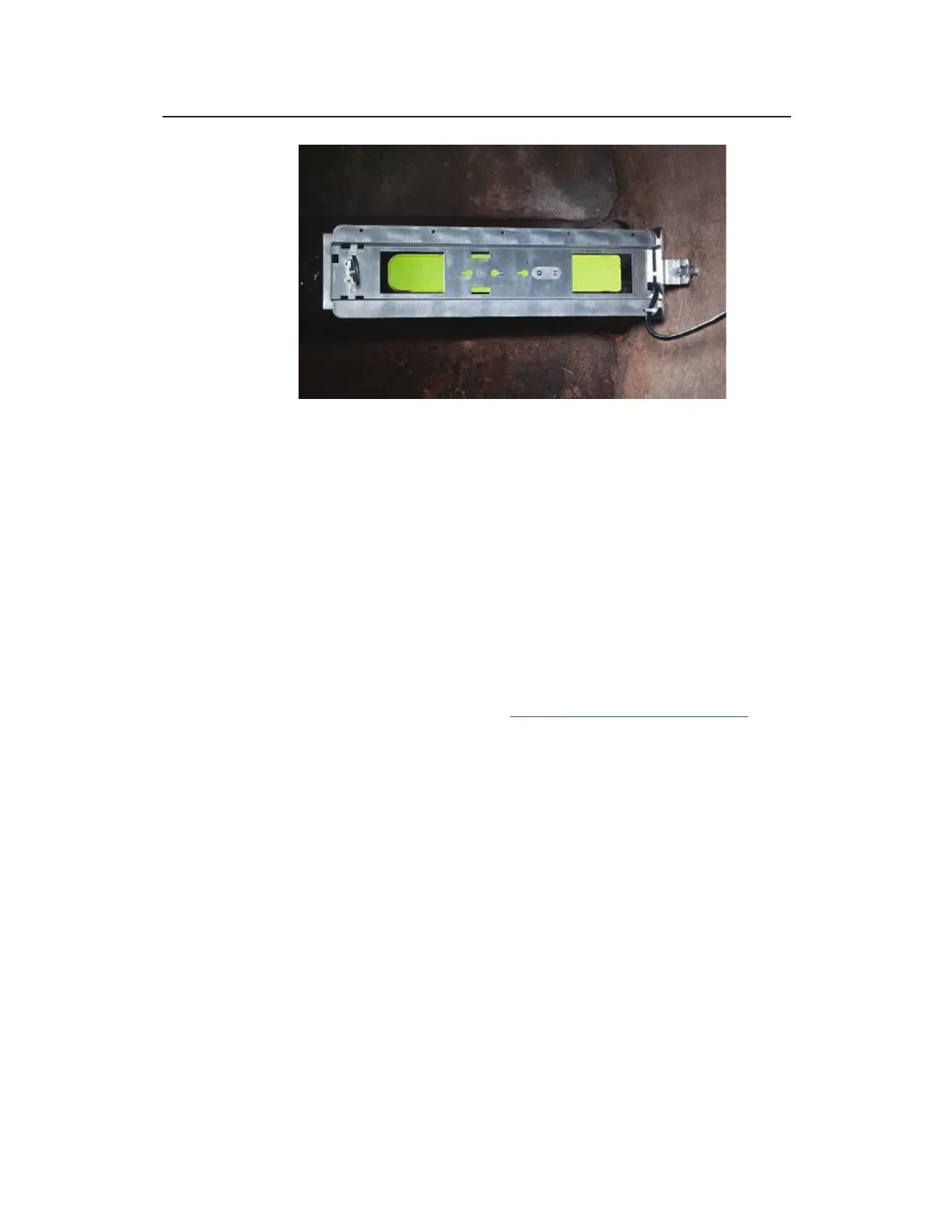

Installed Sensor Bracket on Wall Mount Bracket
13. Lock the Sensor Bracket into place by turning the Sensor
Bracket Loop clockwise.
Measuring the Physical Offset of the Sensor Prior
to Exiting the Manhole
1. Once the sensor is positioned on the Topside Wall Mount,
measure the Physical Offset of the sensor; the distance above
the crown of the pipe. This distance will be input as a negative
number when configuring the sensor in Qstart
XML
. There are
two ways to measure the Physcial Offset. See illustrations
below and refer to Chapter 4 Configuration and Activation for
more information.
