External Power 6-11

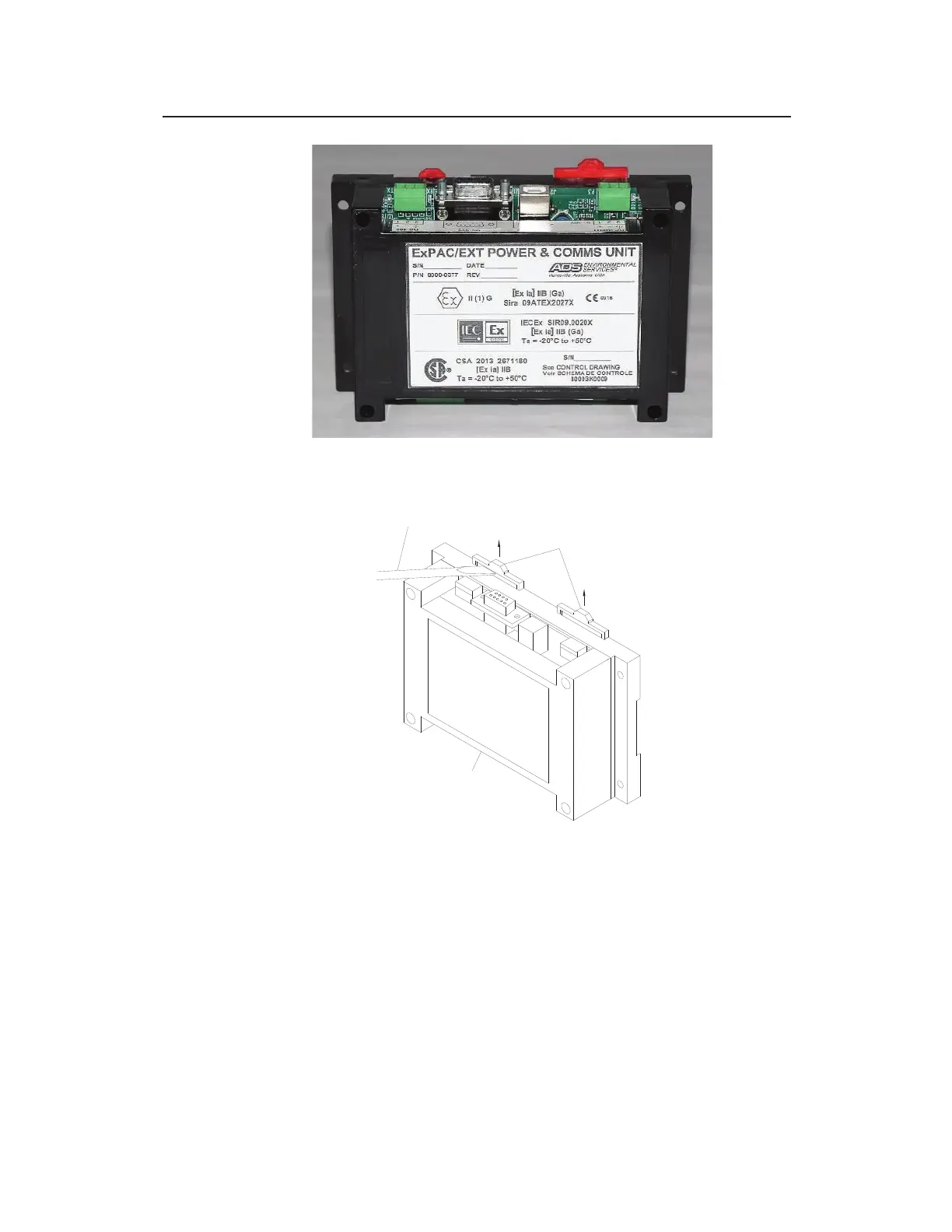

ExPAC with red mounting tabs – left tab displayed in closed (locked)
position; right tab displayed in open (released) position
Using a screwdriver to open (release) the red tabs
2. Notice the horizontal inset across the back of the ExPAC.
Slide the lower edge of the DIN rail down into the small
groove at the bottom of the inset on the back of the ExPAC.
ExPAC
RED TABS
SCREWDRIVER
