8-4 ADS TRITON+ Manual
3. Before securing the Inclinometer to the flood gate, ensure
that the sensor is at 90º, 180º, or completely flat.
Inclinometers installed in the positions shown below will
not record accurate angle measurement data.

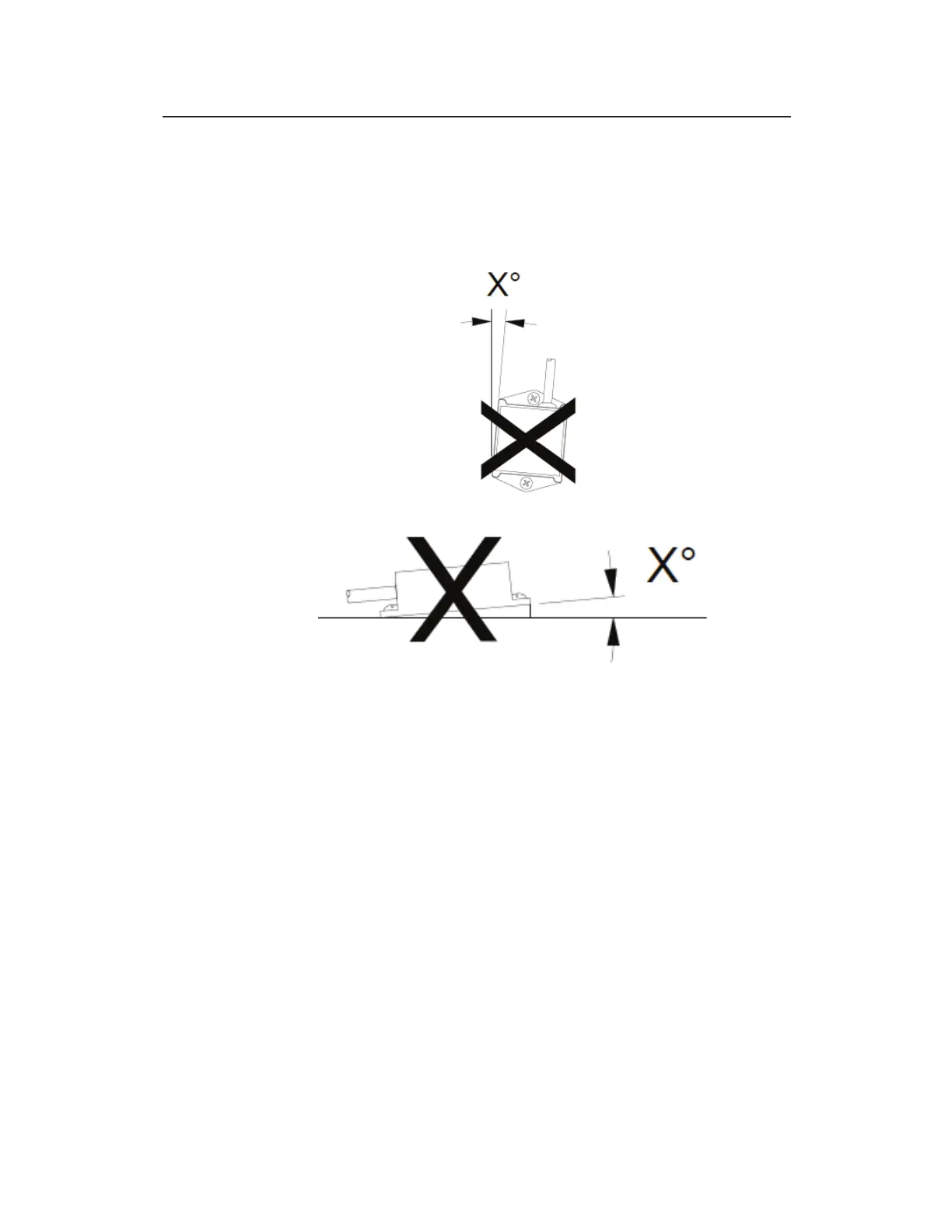

Improper Inclinometer installation positions
4. Attach the inclinomenter securely to the flood gate using
one of the following three methods:
