Analog and Digital I/O 9-5
Feeding wires up through left cable gland in XIO
Insert one of the stripped ends of the positive wire into
the hole corresponding to terminal 1 (or 3) on the I/O
terminal block in the XIO.
Insert one of the stripped ends of the negative wire
into the hole corresponding to terminal 2 (or 4) on the
I/O terminal block in the XIO.

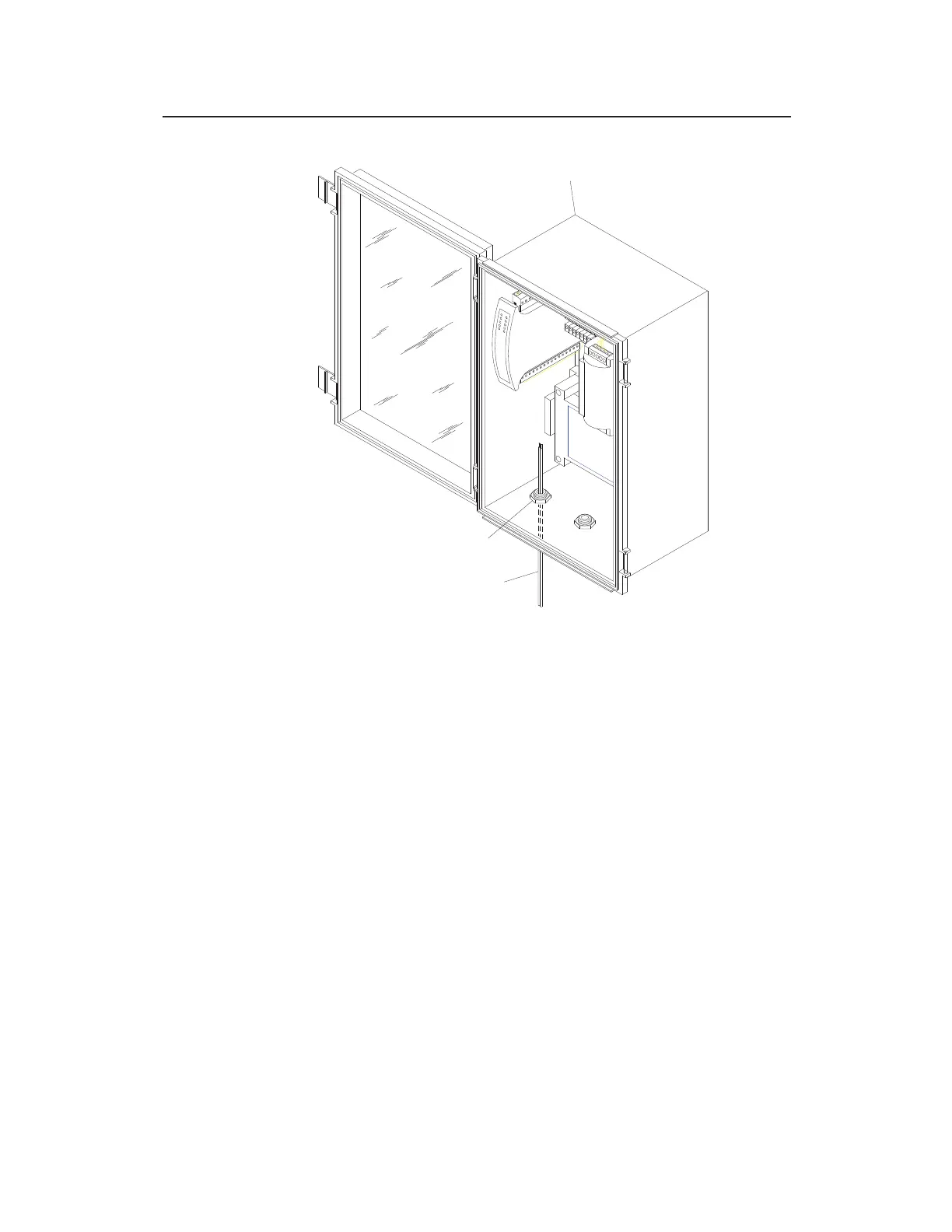

XIO MODULE
CABLE GLAND
2 WIRES
