9-14 ADS TRITON+ Manual
 Run the wires up through the left cable gland on the XIO
into the enclosure. ADS recommends using 18-gauge
wiring. You may need to loosen the plastic nut on the
cable gland on the outside of the XIO to feed the wires
through.

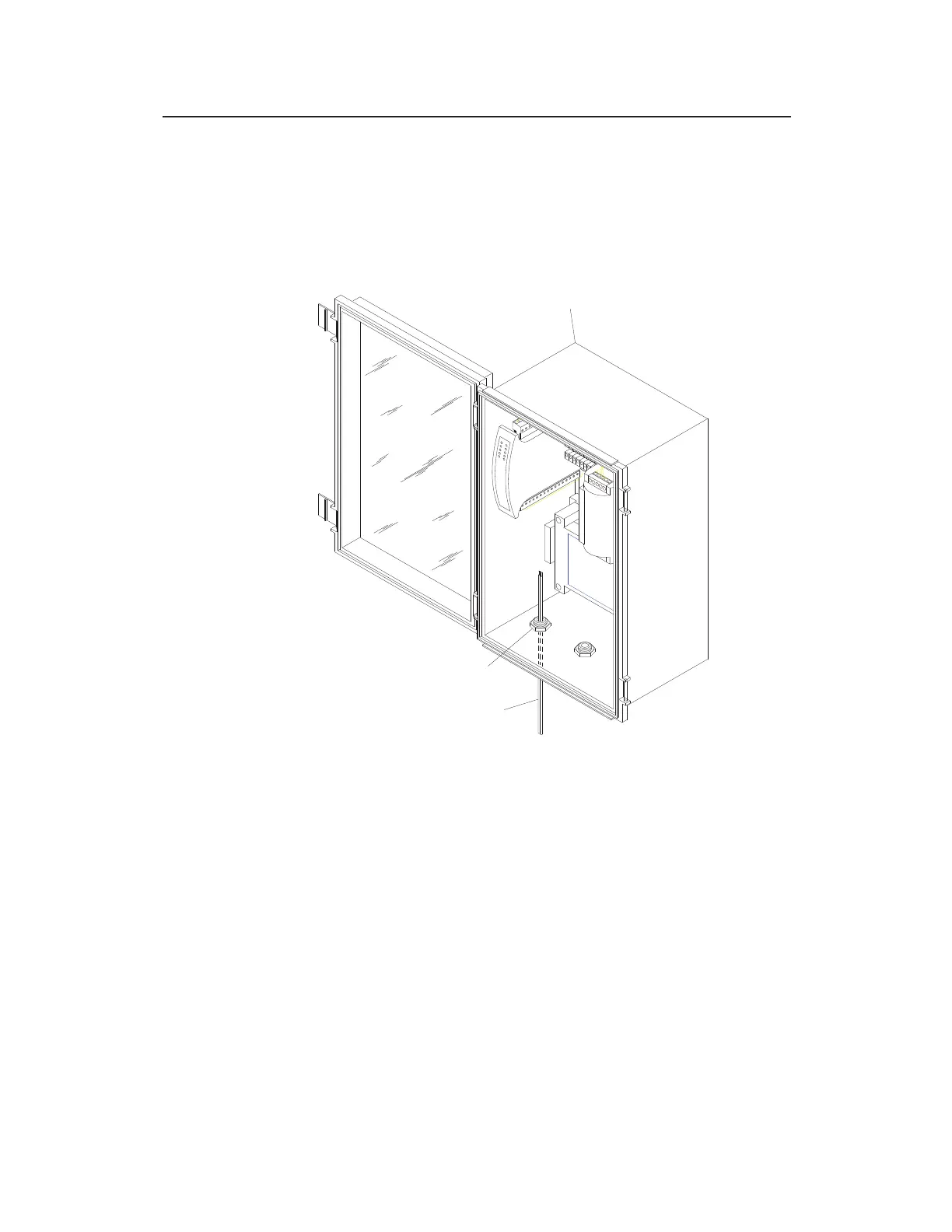

Feeding wires up through left cable gland in XIO
 Insert one of the stripped ends of one of the wires into the
hole corresponding to terminal 9 (or 11) on the I/O
terminal block in the XIO.
 Insert one of the stripped ends of the other wire into the
hole corresponding to terminal 10 (or 12) on the I/O
terminal block in the XIO.
XIO MODULE
CABLE GLAND
2 WIRES
