System Overview 2-29
board and the value is sent to the monitor processor board. A vent
tube on the back of the diaphragm equalizes for atmospheric
pressure. Three versions of pressure transducers are available with
this combo sensor: 0 - 5 PSI (0 - 0.34 Bar), 0 - 15 PSI (0 - 1.03
Bar), and 0 - 30 PSI (0 - 2.07 Bar).
Peak Velocity Sensor

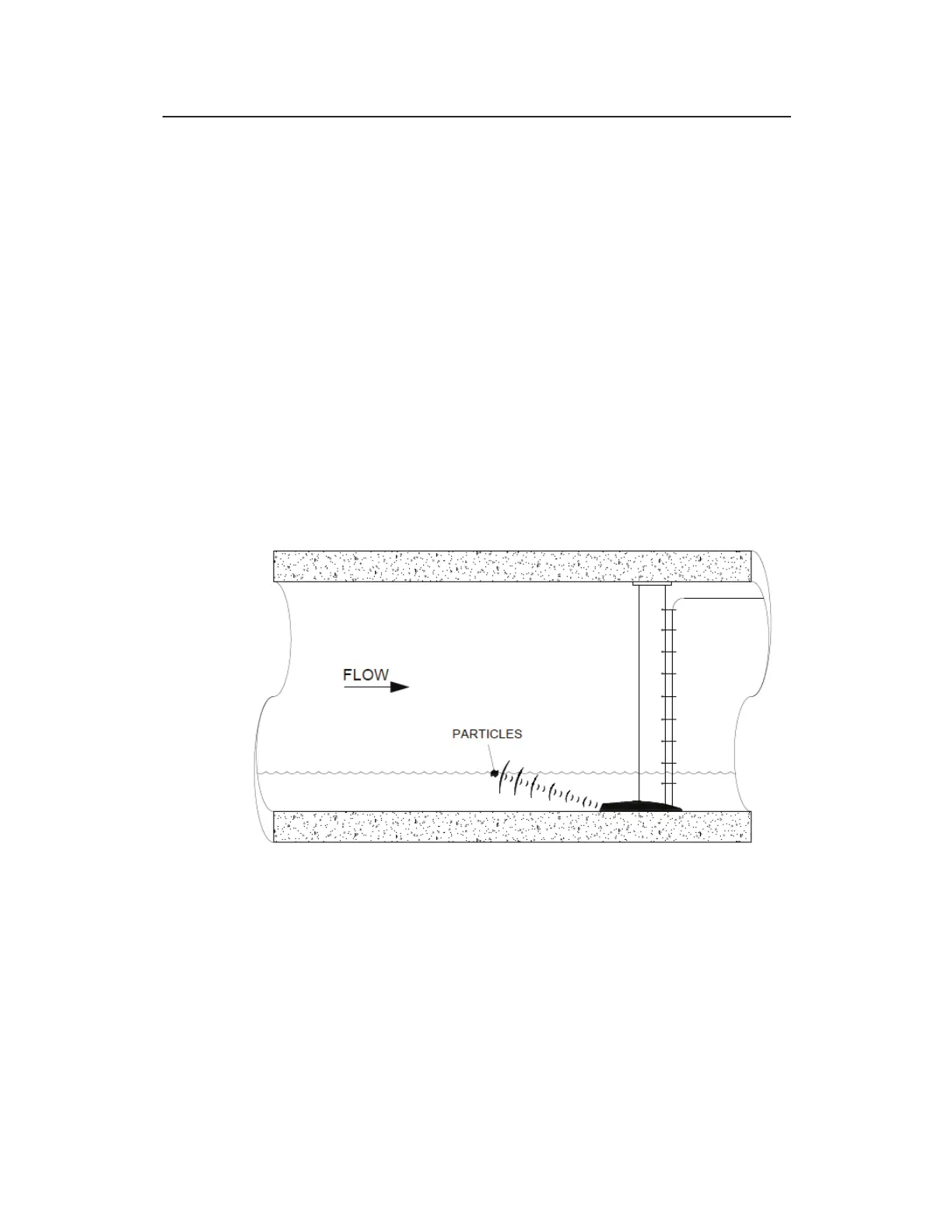

To obtain peak velocity, this sensor sends an ultrasonic signal at an
angle up through the velocity layers in the oncoming flow. It emits
a wide, omni-directional sound wave at a specific frequency
upward into the flow. The sound wave bounces off particles in the
flow and returns to the sensor. The velocity sensor measures the
change in the sound wave's frequency from transmission to
reception. This change is used to determine the peak velocity of the
flow based on the Doppler effect.
Peak Combo sensor Peak Velocity transducer
The Doppler effect describes the shift in frequency of a sound wave
emitted by a moving object in relation to a stationary point. The
moving objects represent particles in the flow, the stationary point
is the velocity sensor, and the signal received is the reflection of the
sound wave (emitted by the velocity sensor) off the particles.
