4-Channel Digital Video Recorder
3
Chapter 2 Installation
Package Contents
The package contains the following:
y Digital Video Recorder
y Power Adaptor and Power Cord
y User’s Manual (This Document)
y RAS Software CD and User’s Manual
y USB Mouse
y Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other
items that make up part of your system.

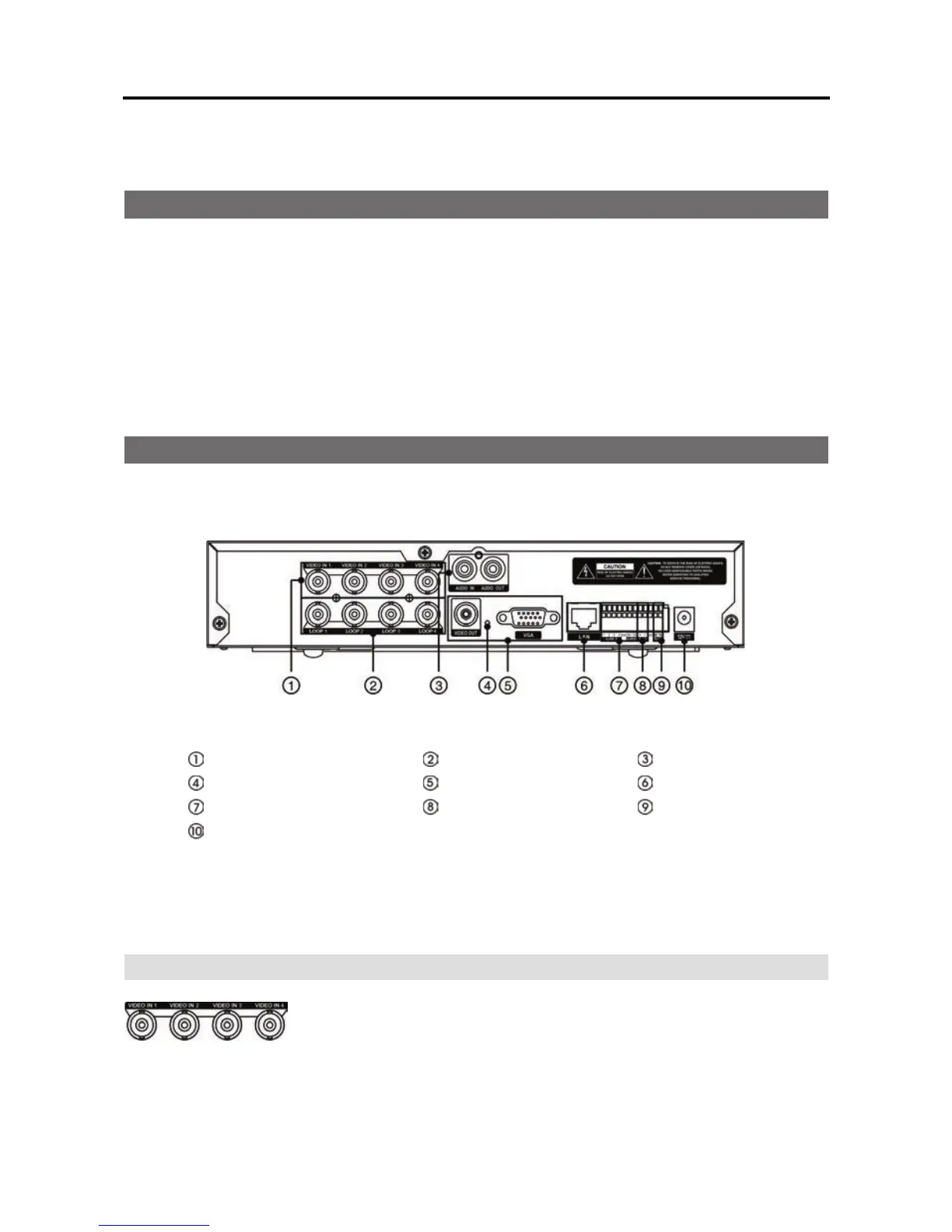

Figure 2 DVR rear panel.
Video Input
Video Loop Through
Audio In/Out
Factory Reset Switch
Video Out
Network Port
Alarm Input/Output
RS485 Port
RS232 Port
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL
camera and an NTSC monitor.
Video Input
Connect the coaxial cables from the video sources to the BNC Video
In connectors.
