4-Channel Digital Video Recorder
9
Panic Button
Pressing the PANIC button starts panic recoding of all camera channels, and displays on the
screen. Pressing the button again will stop panic recording.
Search Button
Pressing the SEARCH button enters the search mode, and pressing the button again exits the search
mode. When entering the search mode, video is paused. Pressing the (Play/Pause) button plays
back video at regular speed. The screen displays
when the DVR is in the Pause mode and the
screen displays
when the DVR is playing back video. The button is also used to load a Preset
View in the PTZ mode.
USB Port
A USB port on the front panel is provided to connect external hard disk or flash drives for video
clip copying or system upgrades. Position external drives close enough to the DVR so that you
can make the cable connections, usually less than 6 feet. Use the USB cable provided with the
hard disk drive to connect it to the DVR.
A USB mouse can be connected to the USB port. You can use the mouse to navigate through
the screens and menus much like you would on a computer.
Remote Control Buttons
ID Button
Camera Buttons
Sequence Button
Freeze Button
Arrow Buttons
Menu Button
Playback Buttons
Panic Button
Layout Button
Zoom Button
PTZ Button
Enter Button
Alarm Button
PTZ Control Buttons
Back Up Button
Calendar Button

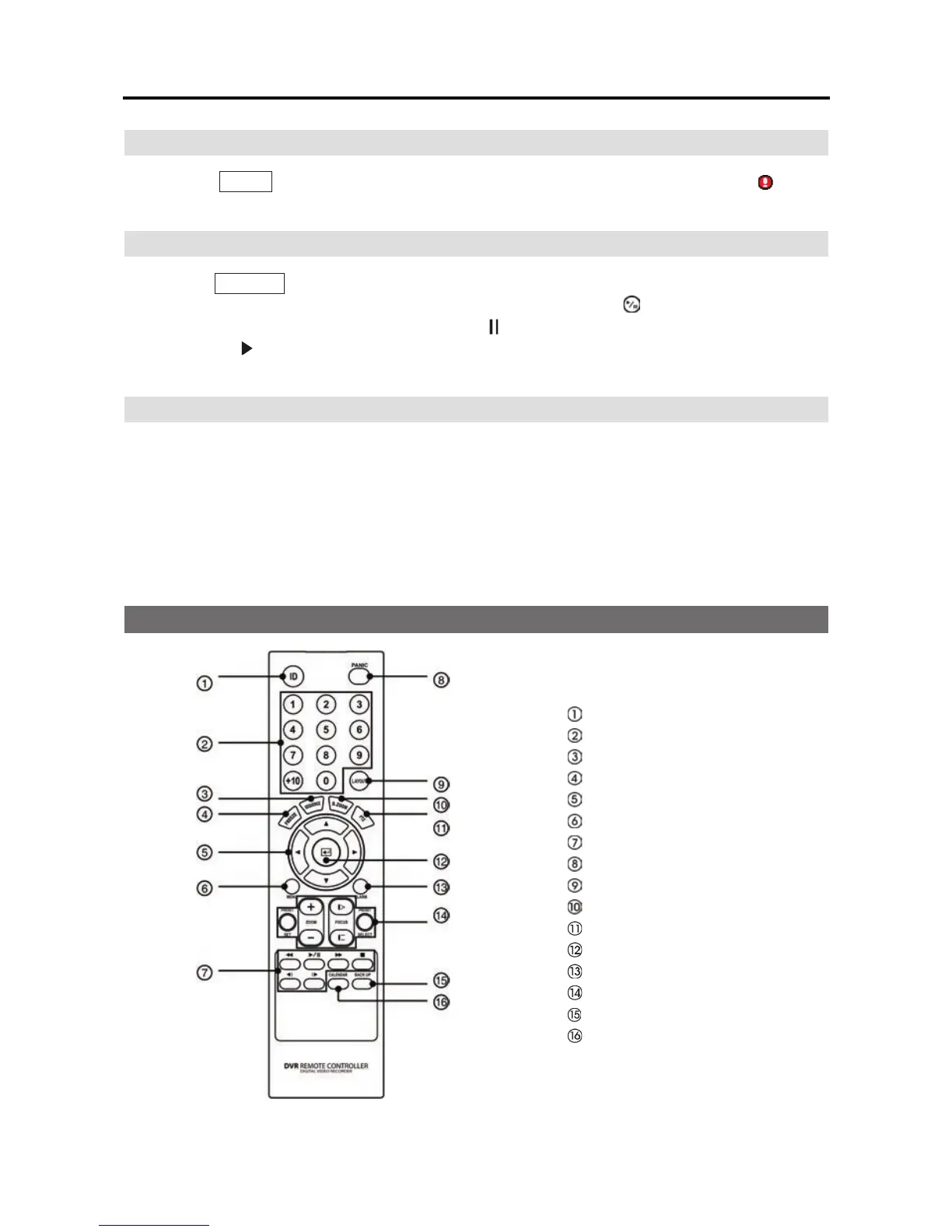

Figure 4 Infrared remote control.
