User’s Manual
32
You can assign IDs to each camera by highlighting the box under the ID heading and pressing the
button. Change the number by highlighting it and using the Up and Down arrow buttons to
increase and decrease the number. The PTZ ID number can be set from 0 to 256.
Highlight the Setup… box and press the button. The Port Setup window appears.
Audio
Highlight Audio in the Devices menu and press the button. The Audio setup screen appears.

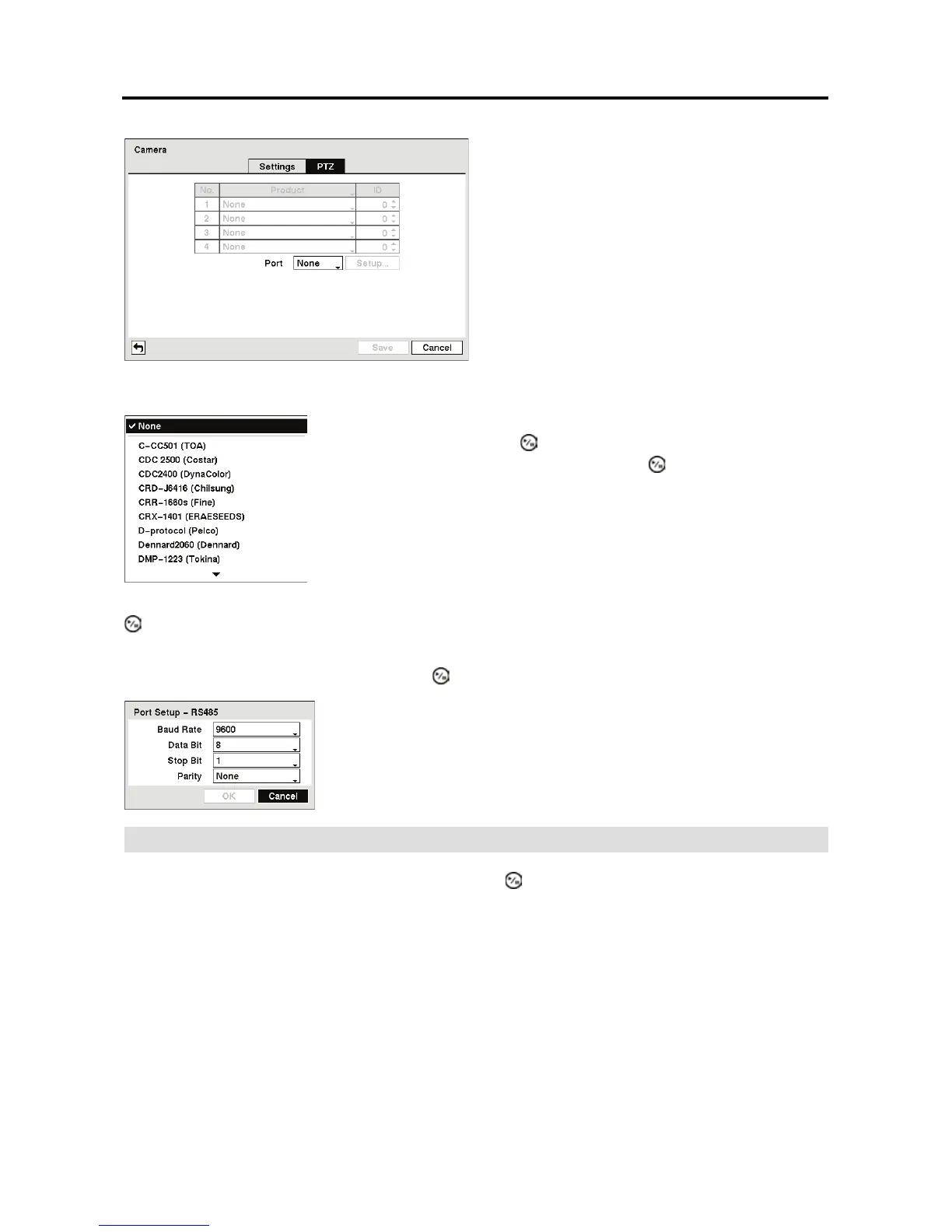

Figure 29 Camera PTZ setup screen.
NOTE: You will only be able to set up PTZ
devices if the PTZ port is set to RS232 or
RS485.
Highlight the box in the Product column for the PTZ camera you wish
to configure and press the
button. A list of PTZ devices appears.
Select your camera from the list and press the
button. You will need
to connect the camera to the RS232 or RS485 connector on the back
of the DVR following the camera manufacturer’s instructions.
Configure the port’s setting based on the PTZ camera manufacturer’s
instructions.
