y Remote Control – The icon
displays when the DVR can be controlled by the infrared remote control.
y Zoom – The icon
displays on the enlarged video.
y Network – The icon
displays when the unit is connected to a network via Ethernet. The icon
displays
when audio communication is available between the DVR and a PC running RAS via Ethernet.
y Freeze & Sequence – The icon
displays while in the Freeze mode, and the
displays while in the
Sequence mode.
y Free Space – The icon
displays when the DVR is in the Recycle mode, and the percentage of available
storage space displays when the DVR is not in the Recycle mode.
y Date/Time – The current date and time information displays.
y User Name The name of the current user logged in displays.
y Camera No. The camera number displays at the top-left corner of each camera screen.
y Camera Title The camera title displays at the top-left corner of each camera screen.
y Record – The record related icons display on each camera screen.
y Audio – The icon
displays when the DVR can play live audio.
y PTZ – The icon
displays on each PTZ camera screen.
y Logo – The logo displays on the screen during playback.
You can adjust the transparency of the setup screens by highlighting Transparency and using
the Left and Right arrow buttons.
Highlight the Main Monitor tab, and the Main Monitor setup screen appears.

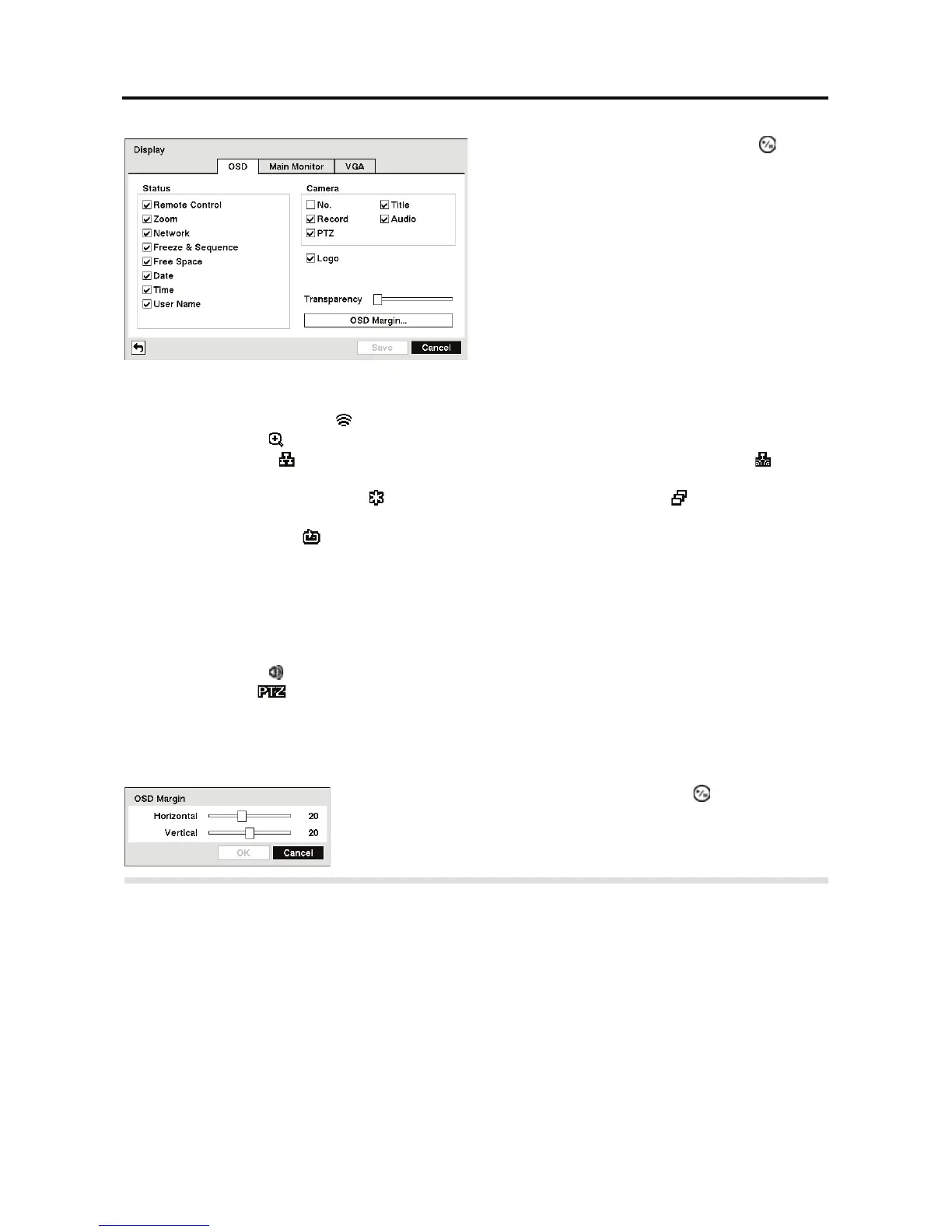

Figure 32 Display OSD setup screen.
Highlighting an item and pressing the button
toggles that item On and Off. When an item is
On, there is a checkmark in the box beside it.
The following items can be turned On or Off:
Highlighting OSD Margin… and pressing the button displays
how OSD text will be displayed on the monitor. You can adjust
the horizontal and vertical margins so that text and icons will not
be hidden beyond the edges of the monitor.
