You can set the amount of time to record prior to the event by adjusting the Dwell. You can set
the Dwell from 5 seconds to 30 seconds. The longer the dwell set, the fewer maximum ips can
be set.
NOTE: When the DVR is in the Time or Time & Event mode, it ignores the pre-event settings
and follows the time settings.
Event Setup

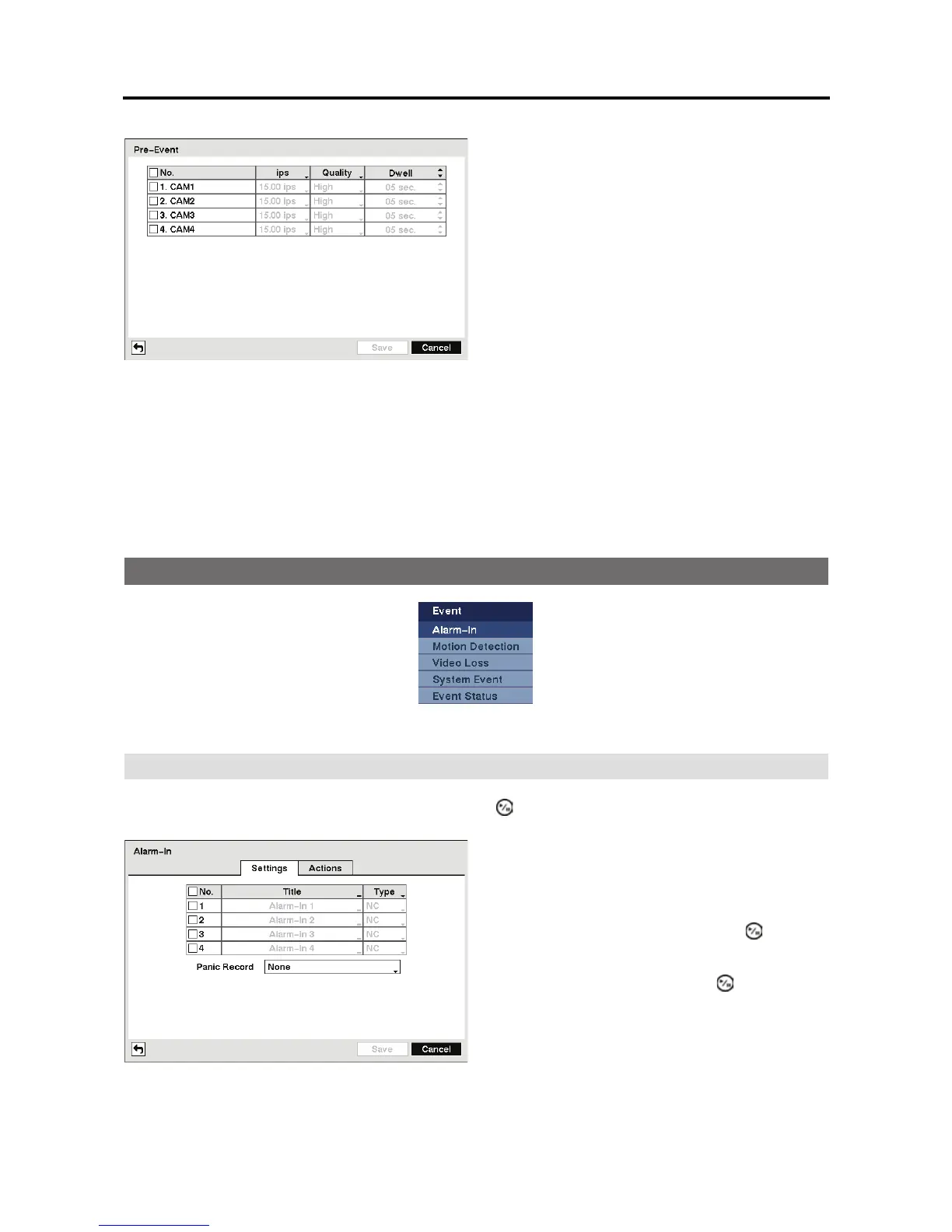

Figure 40 Event menu.
Alarm-In
Highlight Alarm-In in the Event menu and press the button. The Alarm-In setup screen appears.
Figure 39 Pre-Event setup screen.
When the DVR is in the Event Record mode it
is possible to have it record images before the
event occurs. The Pre-Event screen allows you
to define how to handle pre-event recording.
You can turn individual cameras On or Off for
pre-event recording. The image speed can be
set from 0.10 to 30.00 ips (25.00 ips PAL), and
image quality can be selectable from Very High,
High, Standard and Basic.
Figure 41 Alarm-In Settings setup screen.
The alarm terminal strip on the back of the DVR
has inputs associated with each alarm. You can
set up each input on the Alarm-In screen. You
can turn each input On or Off by highlighting
the alarm number and pressing the
button.
Each input can be given a title. Highlight the
desired Title box and press the
button. A
virtual keyboard appears allowing you to enter
a title name.
Each input can be set as NO (normally open) or
NC (normally closed).
