Adtech TV5600-B01 Series User Manual

User Manual of TV5600-B01 Series Dispensing Control System
121

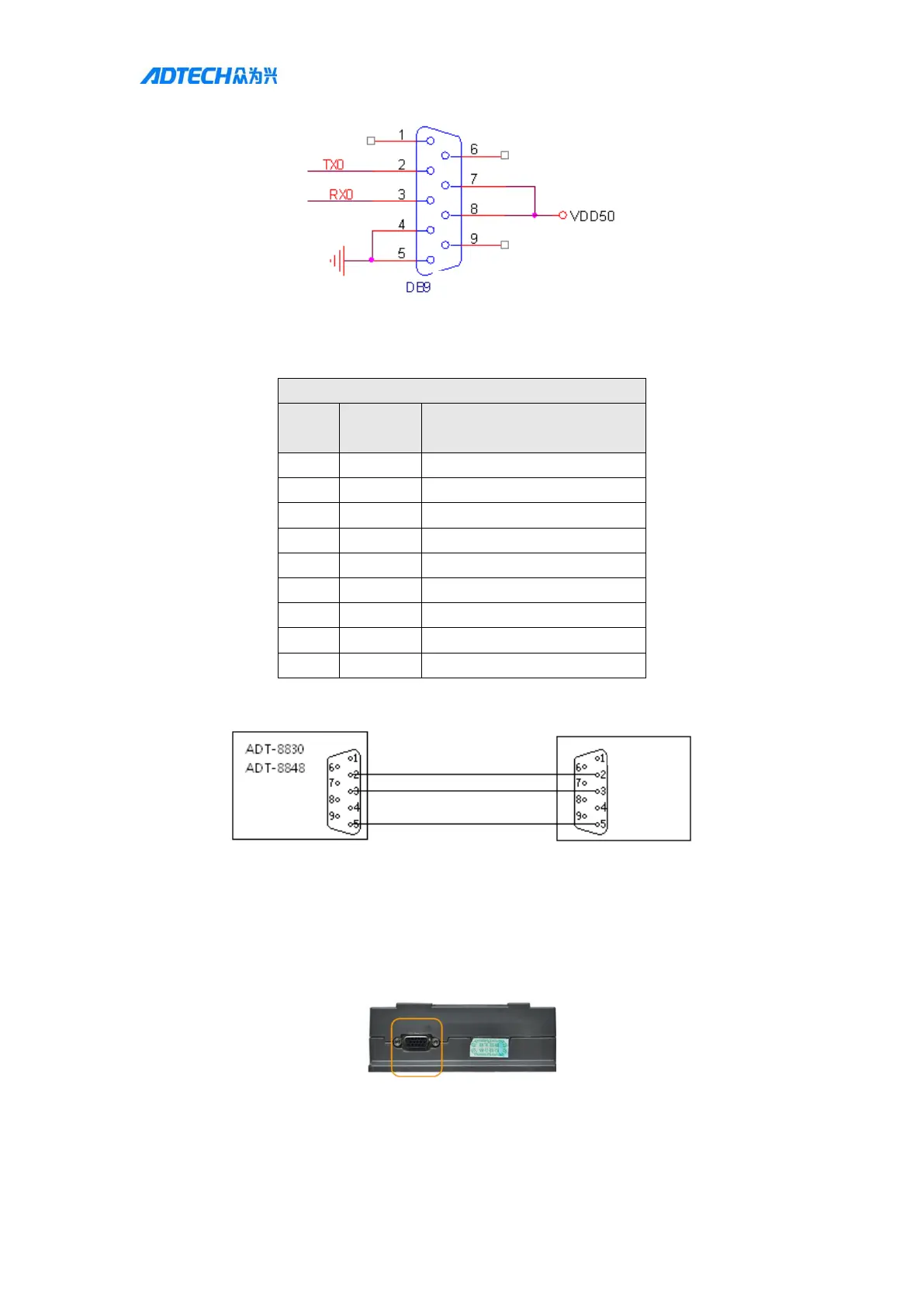

ADT-8849COM0 port
ADT-8849 COM0
Wire
No.
Name
Function
1
NC
NC
2
TX0
Data transmission
3
RX0
Data reception
4
GND
Power ground
5
GND
Power ground
6
NC
NC
7
VDD5.0
Supply 5V power externally
8
VDD5.0
Supply 5V power externally
9
NC
NC
7.02 Serial port 0 and computer wiring
ADT-8849 COM0 RS-232communication
7.03 Serial port 1 wiring definition
The controller COM1 port is used to connect the handheld box TV5600-B01.
ADT-8849 COM1 port
Controller
PC
male connector
