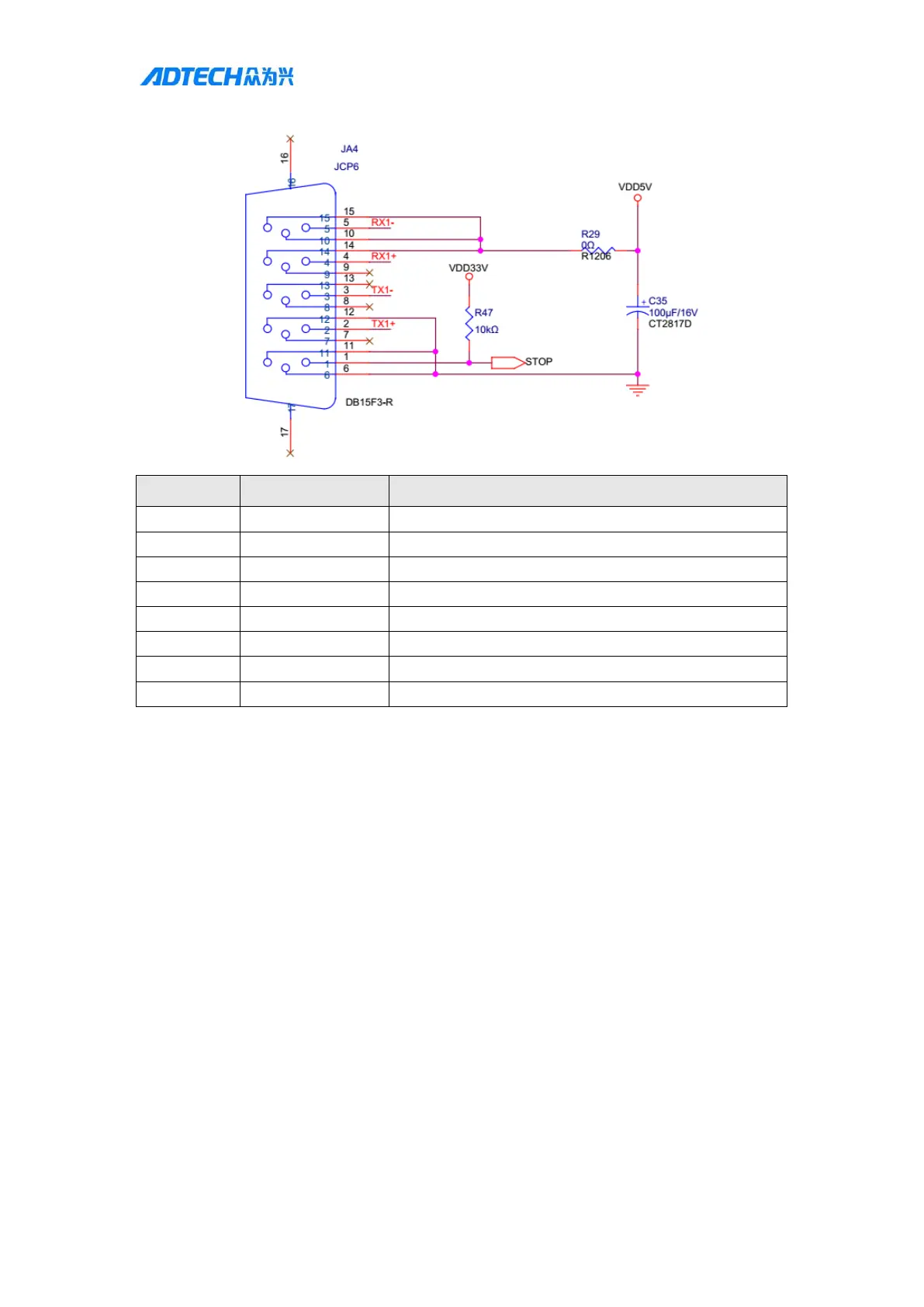

User Manual of TV5600-B01 Series Dispensing Control System

122

Wire No.

Name

Function

1

STOP

Hard emergency stop signal

2

TX1+

Data transmission +

3

TX1-

Data transmission -

4

RX1+

Data reception +

5

RX1-

Data reception -

9,13,8,7

NC

NC

11,12,6

GND

Power ground

14,15,10

VDD5V

Supply 5V power externally

8. ADT-8849wiring diagram example
