Advent Communications
209298 - DVE5000 Technical Operation Handbook - CL140042 Page 20 of 110

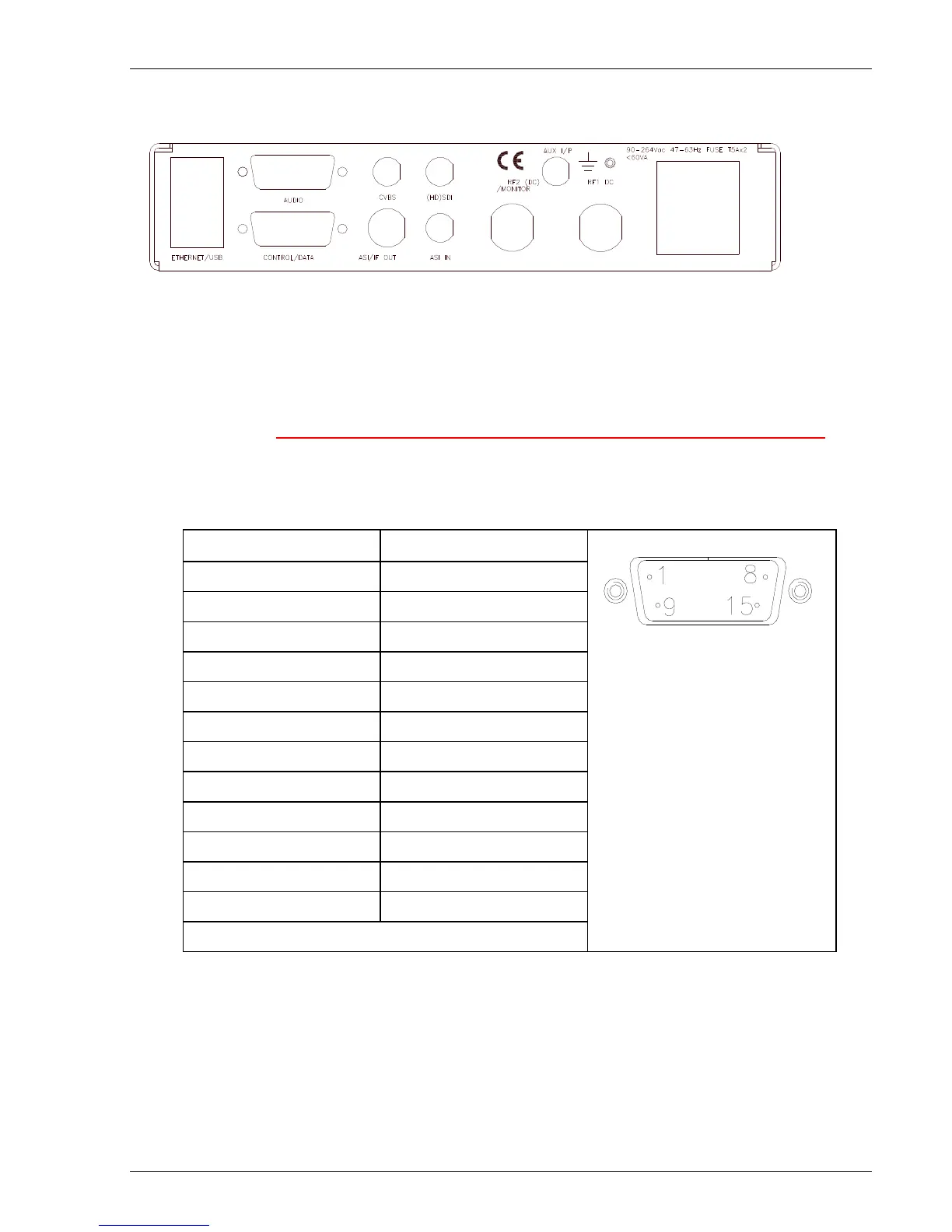

4. REAR PANEL DETAIL
Note rear panel changed October 2008
!
!!
!
CAUTION: the side ventilation grilles must be kept clear to allow adequate airflow.
4.1. AUDIO INPUT (A & B)
Four channels of analogue or digital AES / EBU (option) are via a 15 way D male connector; pin
definitions are given here:
15 way male Function
Pin 1 Audio A left ‘hot’
Pin 2 Audio A left ‘screen’
Pin 9 Audio A left ‘cold’
Pin 10 Audio A right ‘hot’*
Pin 11 Audio A right ‘screen’*
Pin 3 Audio A right ‘cold’*
Pin 4 Audio B left ‘hot’
Pin 5 Audio B left ‘screen’
Pin 12 Audio B left ‘cold’
Pin 13 Audio B right ‘hot’*
Pin 14 Audio B right ‘screen’*
Pin 6 Audio B right ‘cold’*
* Are for optional Digital AES/EBU 2ch inputs.
