Micro-Ohmmeter Model 6250
2.6 Display Symbols
The display incorporates two lines of characters to display test results, as
well as a library of symbols to assist the operator in determining conditions
at a glance. The symbols that can appear are shown in Figure 2-2 and are
detailed here.

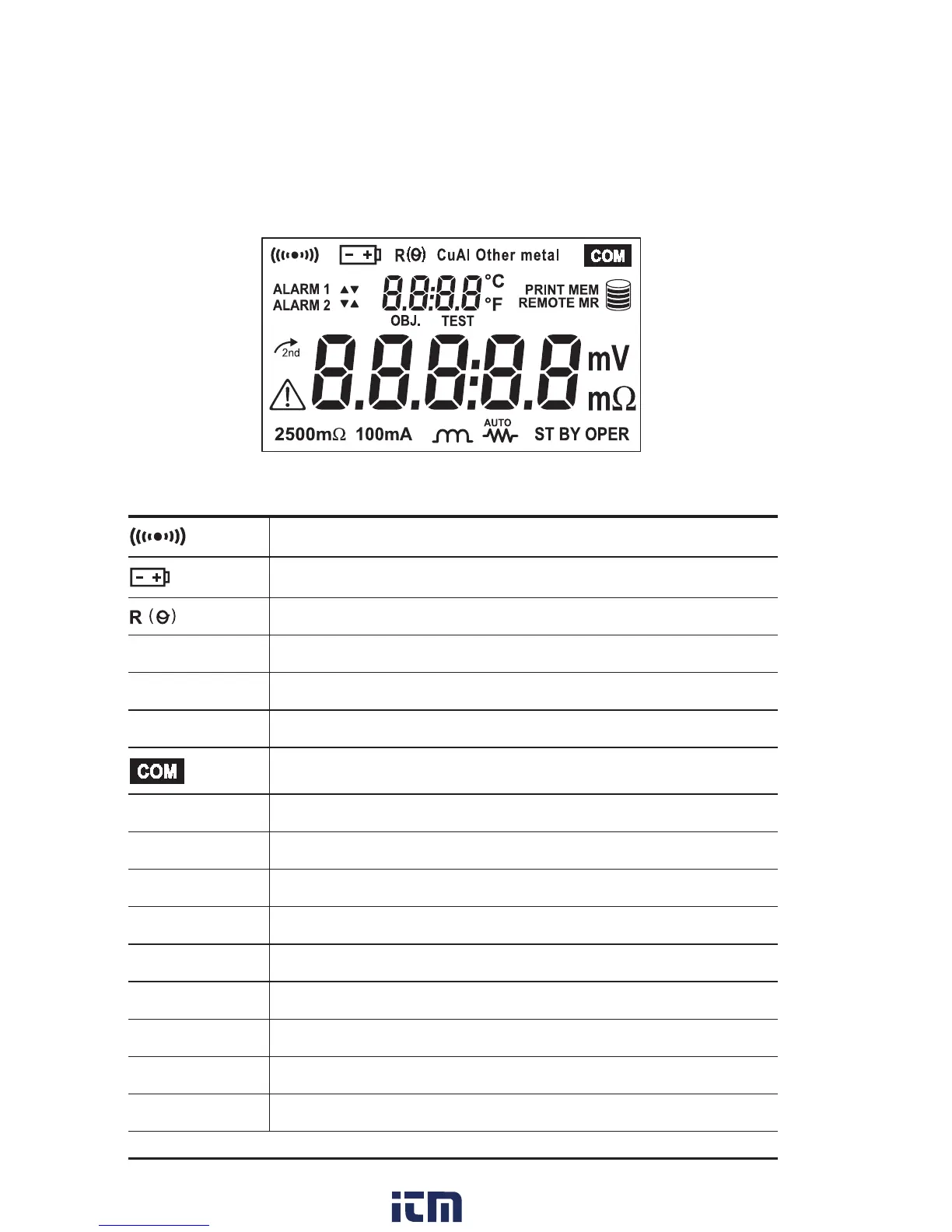

Figure 2-2
Buzzer ON
Battery condition
Temperature compensation ON
Cu
Copper metal type selected
Al
Aluminium metal type selected
Other metal
User defined metal type selected
Communication port active
ALARM 1 ▲
Alarm 1 active with high set point
ALARM 1 ▼
Alarm 1 active with low set point
ALARM 2 ▲
Alarm 2 active with high set point
ALARM 2 ▼
Alarm 2 active with low set point
OBJ.
First position locator for data stored in memory
TEST
Second position locator for data stored in memory
°C / °F
Temperature displayed in either degrees Centigrade or Fahrenheit
PRINT
Printing current test result or tests stored in memory
MEM
Displayed measurement about to be stored in memory
