AERMEC Turbocor - Inputs;outputs - WTX;WTG digital outputs page; Inputs;outputs - WMX;WMG digital outputs page; Inputs;outputs - TW110 digital outputs page

A BC
1
D
2
A BC
1
D
2
A BC
1
D
2
23

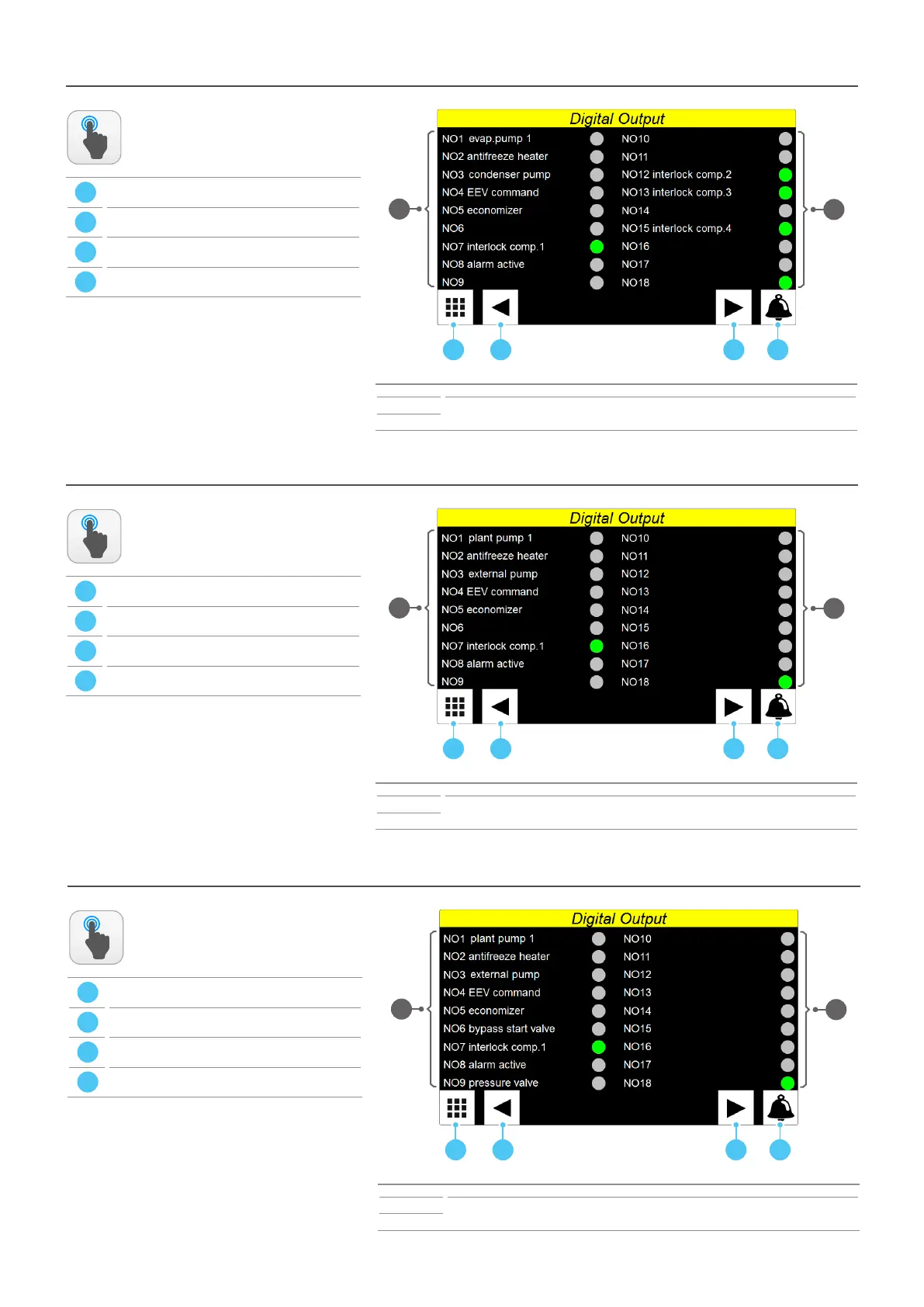

Inputs/outputs menu - WTX/WTG digital outputs page
Index Meaning
1
The statuses of the available digital outputs are indicated (green = On; grey = O)
2
ACTIONS
AVAILABLE:
A
Open the menu selecting page
B
Open the alarm menu
C
Go to next page
D
Go back to previous page
Inputs/outputs menu - WMX/WMG digital outputs page
Index Meaning
1
The statuses of the available digital outputs are indicated (green = On; grey = O)
2
ACTIONS
AVAILABLE:
A
Open the menu selecting page
B
Open the alarm menu
C
Go to next page
D
Go back to previous page
Inputs/outputs menu - TW110 digital outputs page
Index Meaning
1
The statuses of the available digital outputs are indicated (green = On; grey = O)
2
ACTIONS
AVAILABLE:
A
Open the menu selecting page
B
Open the alarm menu
C
Go to next page
D
Go back to previous page
