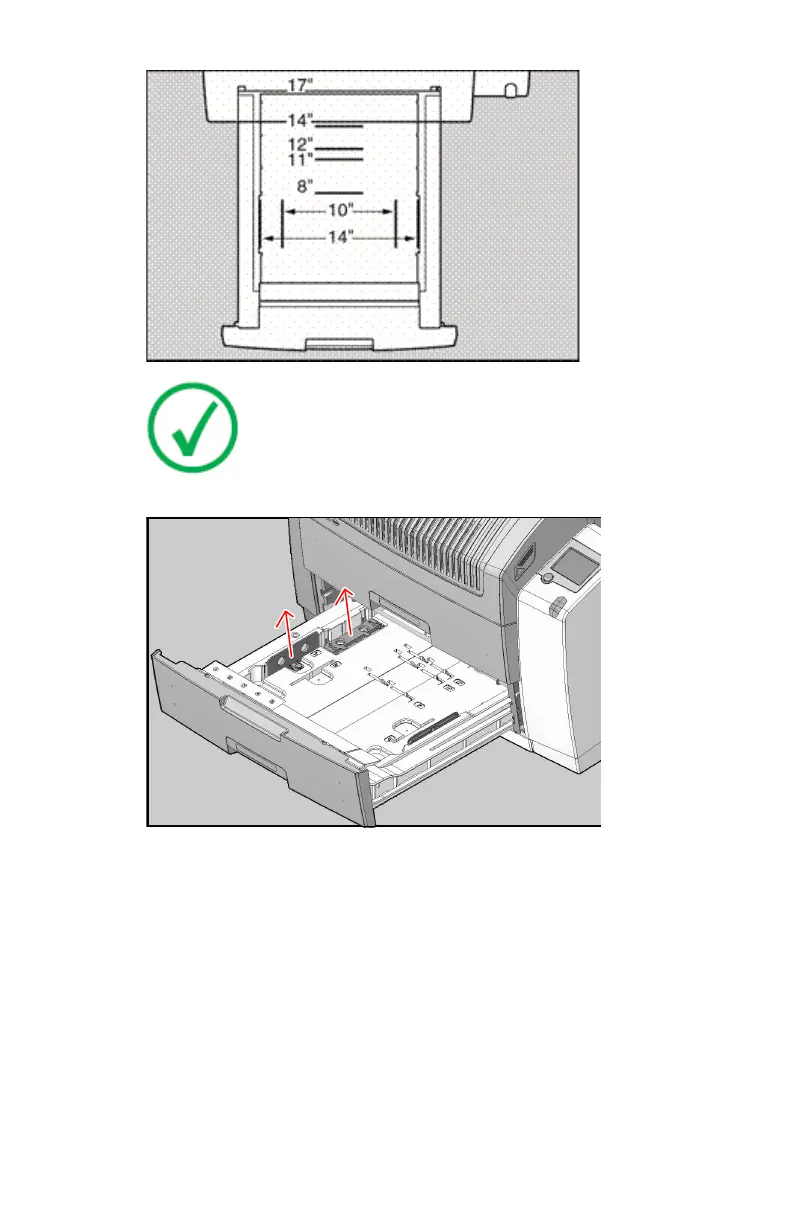

Note: Note that there is a screw to secure the position of the
10” and 14” width format tabs. The format tabs positioned in
the depth are not provided with a screw.
4. Remove the film position tab.
1.
To remove the width format tabs, loosen the screw first and then pull
out the tab.
2.
To remove the depth format tab, slide it to the left to unlock it and then
pull out the tab.
5. Put the film format tab in place.
Drystar 5301, Drystar 5302 | Basic Operation (operator mode) | 81
2831F EN 20210601 1655
