4349B
T

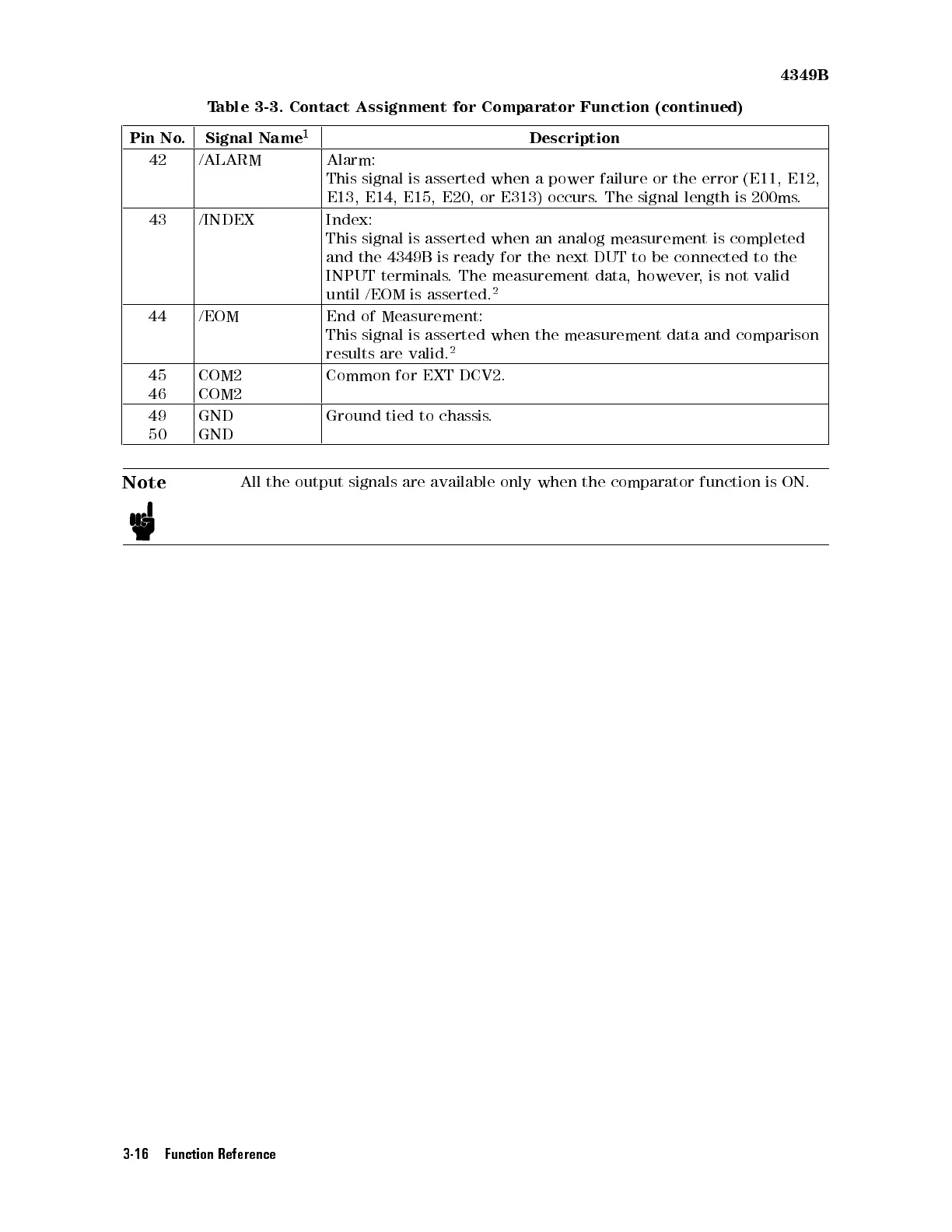

able 3-3.
Contact Assignment
for
Comparator
Function
(continued)
Pin No
.
Signal Name
1
Description
42 /ALARM Alarm:
This
signal
is
asserted
when
a
power
failure
or
the
error
(E11, E12,
E13,
E14,
E15,
E20,
or
E313)
occurs
.
The
signal
length
is 200ms
.
43 /INDEX Index:
This
signal
is
asserted
when
an
analog
measurement
is
completed
and
the
4349B
is
ready
for
the
next
DUT
to be
connected to
the
INPUT
terminals
.
The
measurement
data, however
,is
not valid
until
/EOM
is
asserted.
2
44 /EOM End
of
Measurement:
This
signal
is
asserted
when
the
measurement
data
and
comparison
results
are
valid.
2
45
46
COM2
COM2
Common for
EXT DCV2.
49
50
GND
GND
Ground
tied
to
chassis
.
Note
All
the
output
signals
are
available
only when
the comparator
function is
ON.
3-16 Function Reference
