5 General Maintenance

140 5975/5977 Series MSD Operating Manual

To Connect/Disconnect Wiring from the EI XTR,

SS, and Inert Sources

Materials needed

• Gloves, clean, lint-free (Large 8650-0030) (Small 8650-0029)

• Pliers, long-nose (8710-1094)

• Tweezers (8710-2460)

Procedure

1 Use tweezers or needle nose pliers to connect/disconnect the ceramic

source board wire leads at the source connectors. (See Figure 43.)

2 Use tweezers or needle nose pliers to connect/disconnect the source heater

wire leads at the ceramic source board.





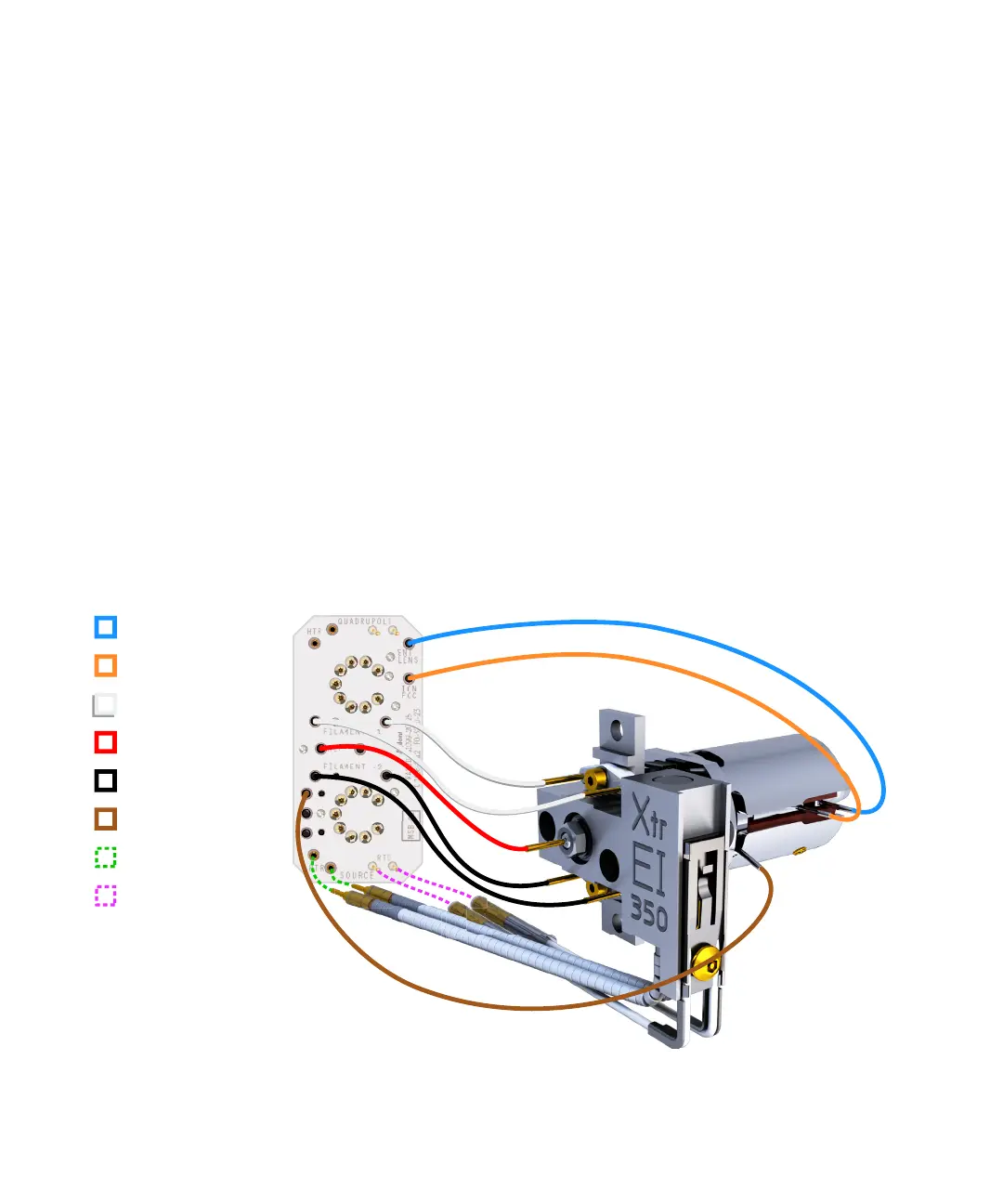

Figure 43. Wiring for the EI XTR Source

Extractor lens

Source heater

Repeller

Filament 1

Source RTD

Filament 2

Ceramic source board

Entrance lens

Ion focus lens
