5 General Maintenance

5975/5977 Series MSD Operating Manual 157

To Replace a Filament in an EI XTR, SS, or

Inert Source

Materials needed

• Filament assembly (G7005-60061)

• Gloves, clean, lint-free

• Large (8650-0030)

• Small (8650-0029)

• Hex ball driver, 1.5-mm (8710-1570)

Procedure

1 Vent the MSD. (See “Venting the MSD” on page 96.)

2 Open the analyzer chamber. (See “To Open the Analyzer Chamber” on

page 119.)

3 Remove the ion source. (See “To Remove the EI XTR, SS, or Inert Source” on

page 139.)

4 Remove the gold plated screw and washer for the filaments. (See Figure 49.)





WARNING

The analyzer operates at high temperatures. Do not touch any part until you are

sure it is cool.

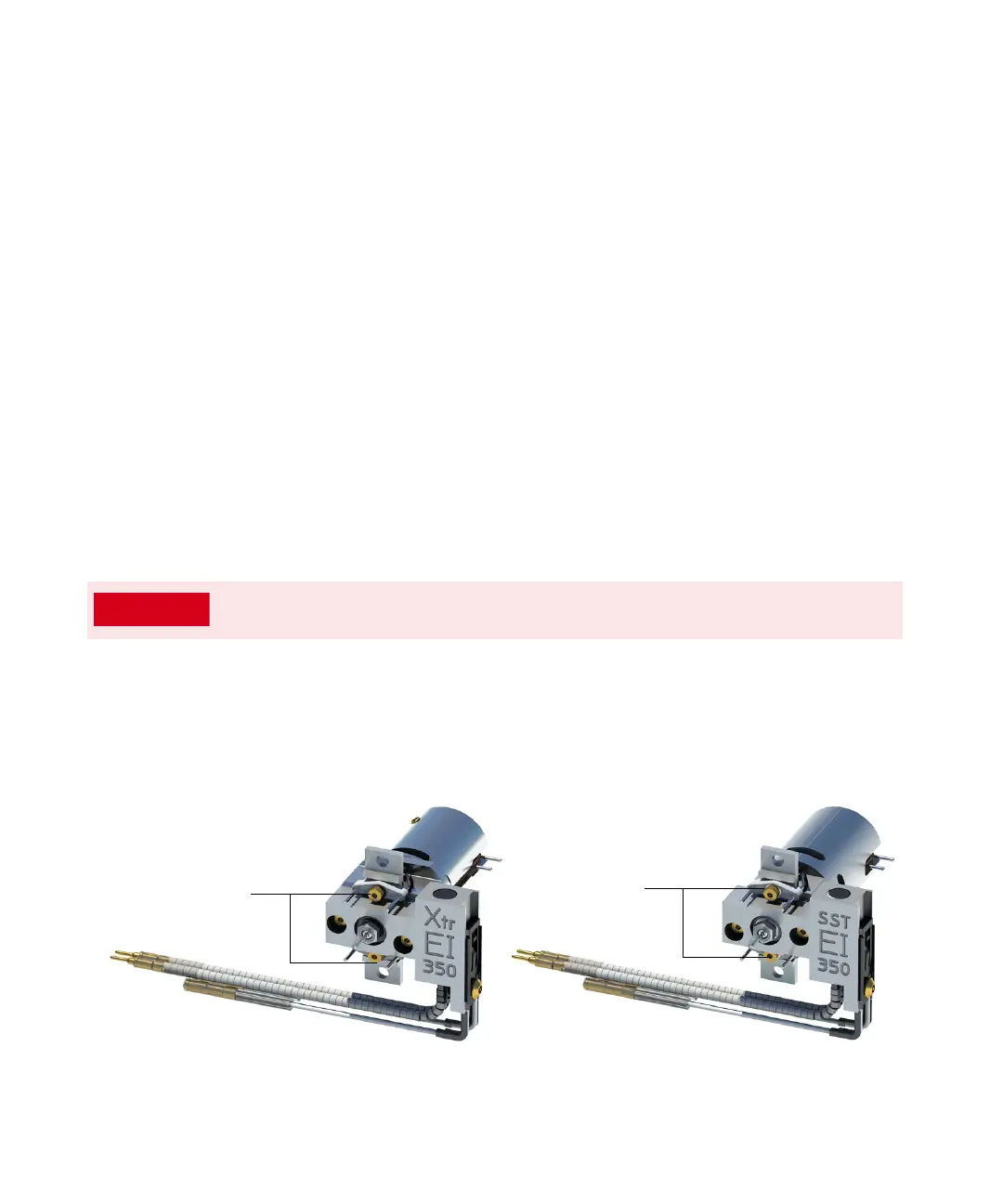

Figure 49. Changing the filament

Gold plated screws

and washers

Gold plated screws

and washers
