5 General Maintenance

5975/5977 Series MSD Operating Manual 159

To Install the EI XTR, SS, or Inert Source

Materials needed

• Gloves, clean, lint-free

• Large (8650-0030)

• Small (8650-0029)

• Pliers, long-nose (8710-1094)

Procedure

1 Slide the ion source into the source radiator. (See Figure 50.)

2 Insert and hand tighten the source thumbscrews. Do not overtighten the

thumbscrews. (See Figure 50.)

3 Connect the ion source wires. (See “To Connect/Disconnect Wiring from the

EI XTR, SS, and Inert Sources” on page 140.)

4 Close the analyzer chamber. (See “To Close the Analyzer Chamber” on

page 162.)





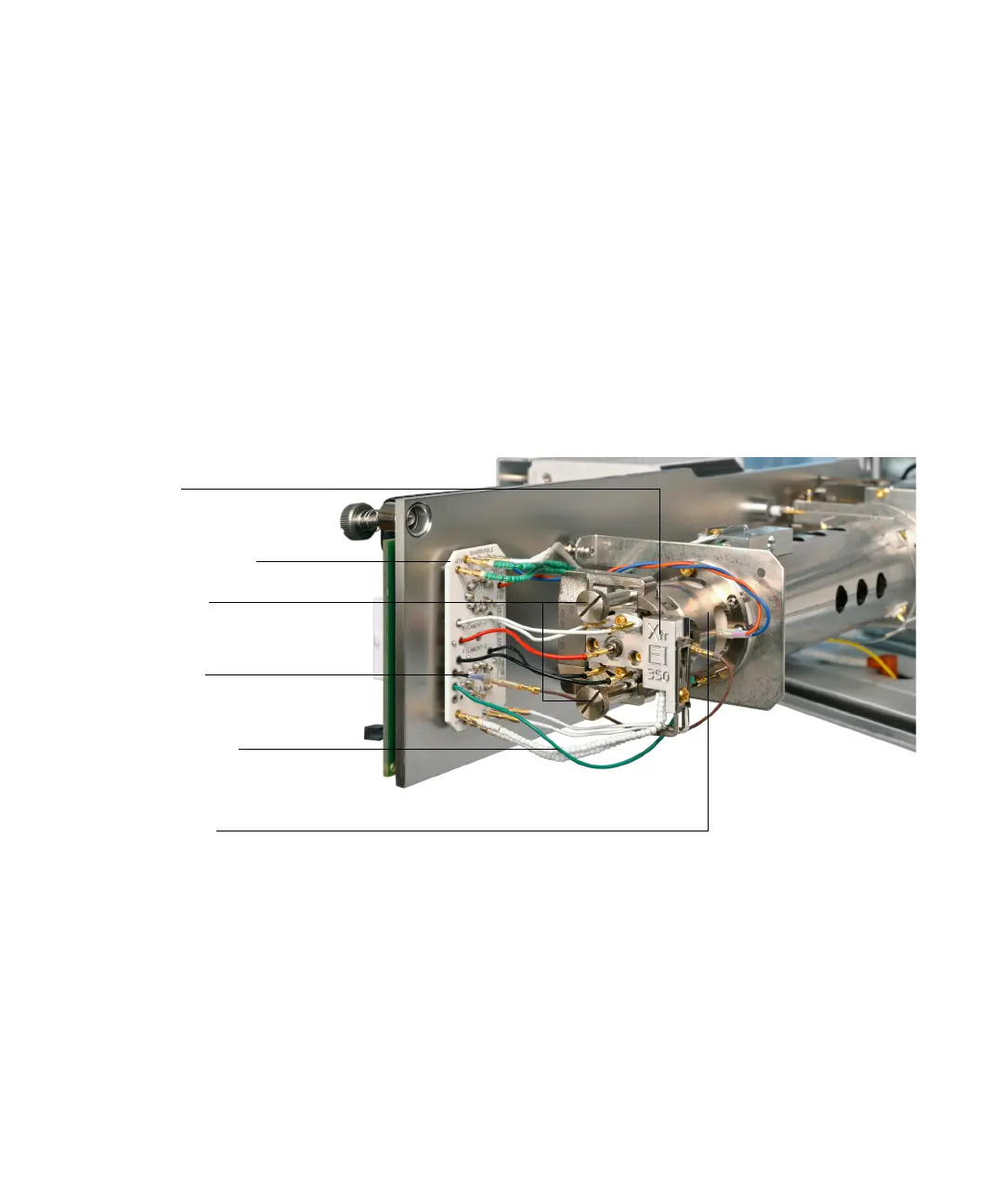

Figure 50. Installing the EI source

Ceramic source board

Ion source

Thumbscrews

Source heater and temperature

sensor wires

Source radiator

Extractor wire
