5 General Maintenance

5975/5977 Series MSD Operating Manual 123

To Connect/Disconnect Wiring to the EI HES

Materials needed

• Gloves, clean, lint-free (Large 8650-0030) (Small 8650-0029)

• Pliers, long-nose (8710-1094)

• Tweezers (8710-2460)

Procedure

1 Use tweezers or needle nose pliers to connect/disconnect the ceramic board

wire leads (red, white, black, and gray) at the source connectors. (See

Figure 36.)





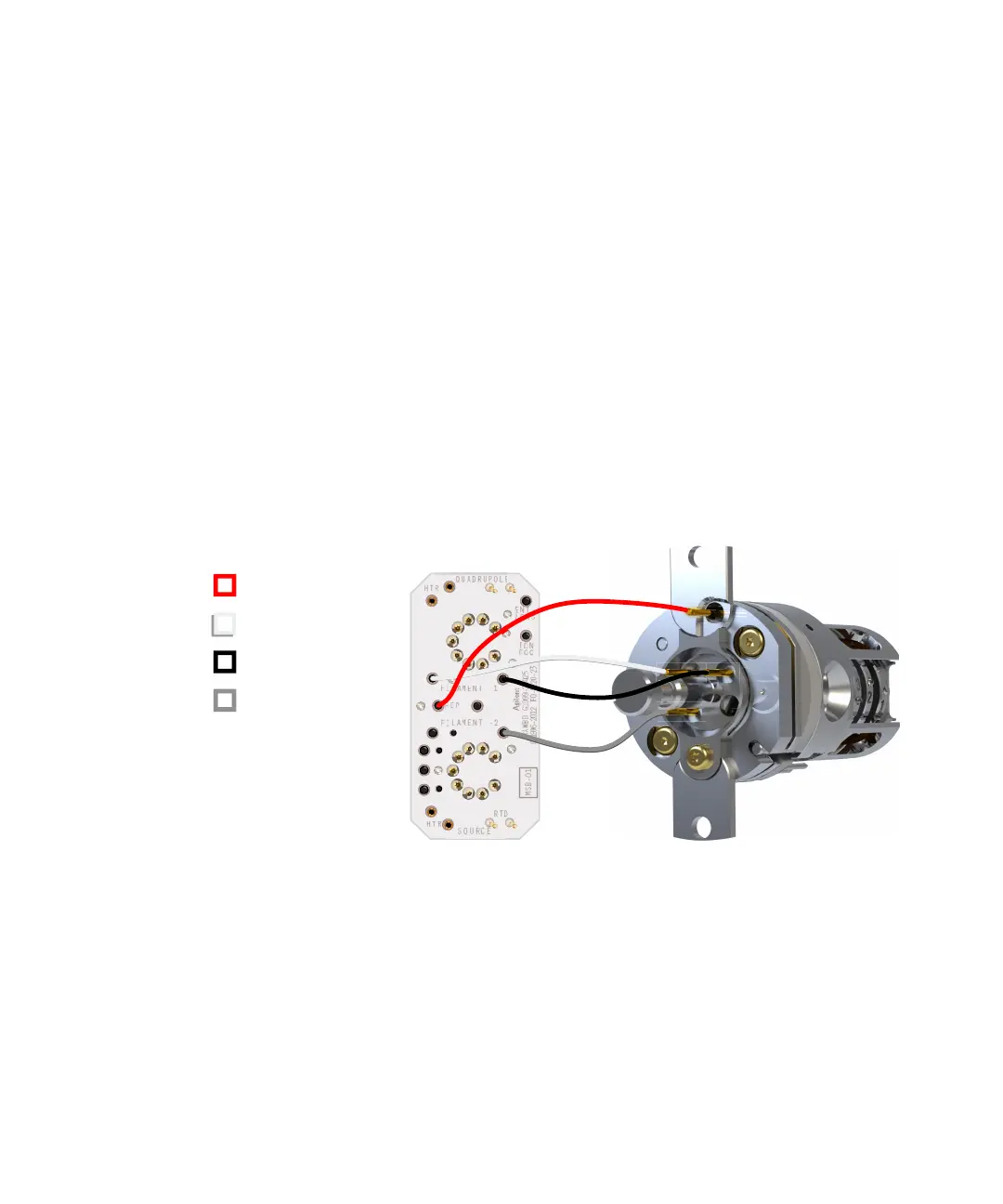

Figure 36. Wiring between the ceramic source board and the EI HES

Repeller

Filament common

Filament 1

Filament 2

Ceramic source board
