4 Operating in EI Mode

100 5975/5977 Series MSD Operating Manual

View MSD Temperatures and Vacuum

Pressure monitoring requires an optional Micro-Ion vacuum gauge (G3397A for

the 5975 and G3397B for the 5977 series).

Select Instrument Status in the windows area and click MSD to display the MSD’s

actuals values including the source and quad temperatures and quad manifold

vacuum pressure.

WARNING

If you are using hydrogen as a carrier gas, do not turn on the Micro-Ion

vacuum gauge if there is any possibility that hydrogen has accumulated in the

analyzer chamber. Read “Hydrogen Safety” on page 19 before operating the

MSD with hydrogen carrier gas.

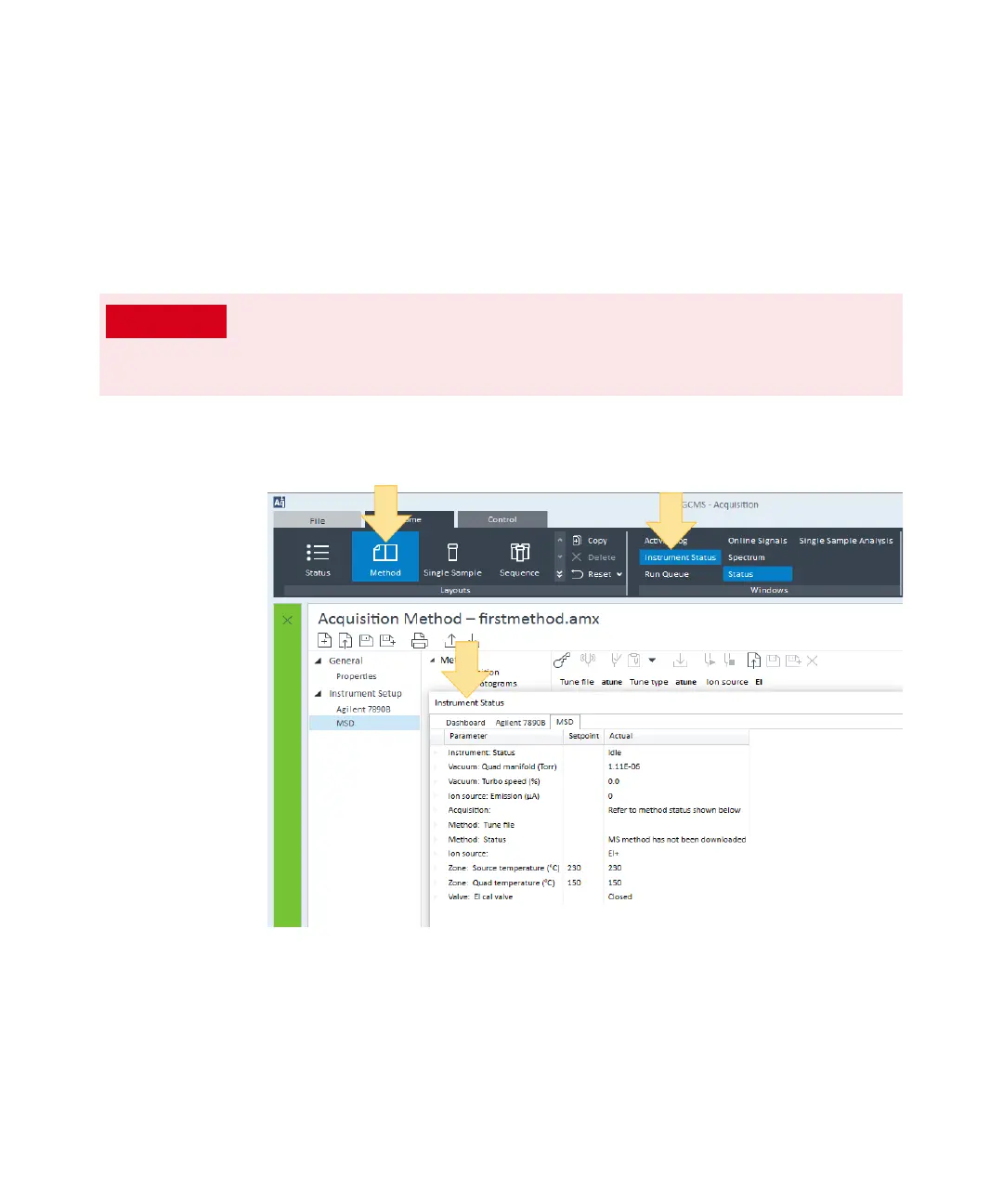

Figure 26. The MSD Instrument Status screen
