Temperature Probe Installation (708-DS)
1 Insert the water bath temperature probe into the BATH TEMP jack
on the rear of the dissolution apparatus drive unit.

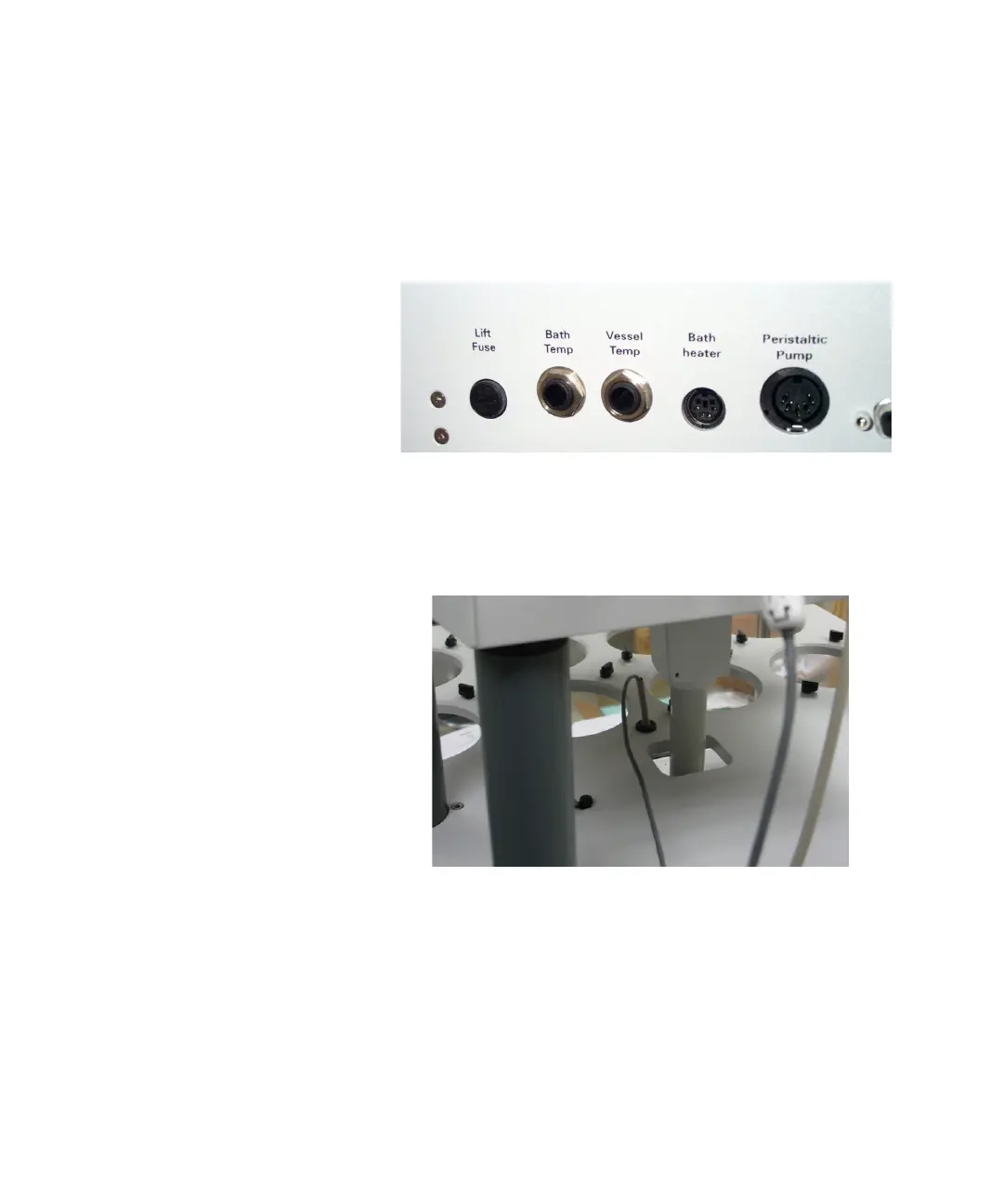

Figure 8 BATH TEMP Connector
2 Place the other end of the temperature probe through the hole in the
center of the vessel plate in the water bath.
Figure 9 Positioning the Temperature Probe
