Setting Up the 708-DS / 709-DS 3
708-DS / 709-DS Operator’s Manual 37

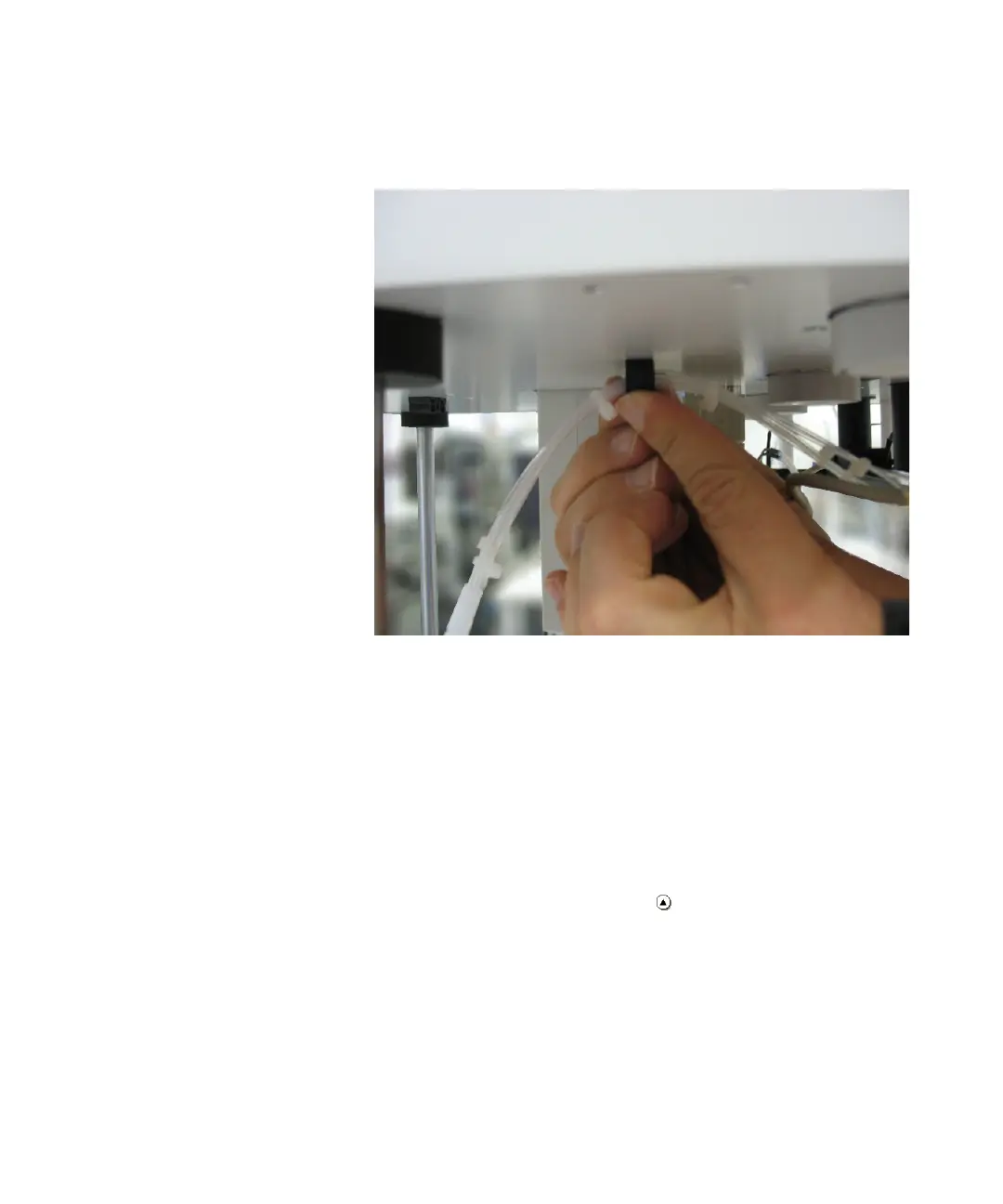

Figure 14 Affixing the Fasteners
Accessory Installation
1 Locate the appropriate accessories from the following list to be
configured with the Agilent 708-DS / 709-DS: evaporation covers,
Dosage Delivery Modules (DDMs), alignment posts, receptor shafts,
paddle shafts, basket shafts, and shaft locking collars.
2 If necessary, press and hold Drive to move the drive unit to its
fully raised position.
3 If applicable, insert a receptor shaft (spin on/off shafts only) into
each spindle location.
4 Slide an evaporation cover onto the shafts to be installed and insert
the shaft into each spindle location.
