Setting Up the 708-DS / 709-DS 3
708-DS / 709-DS Operator’s Manual 39

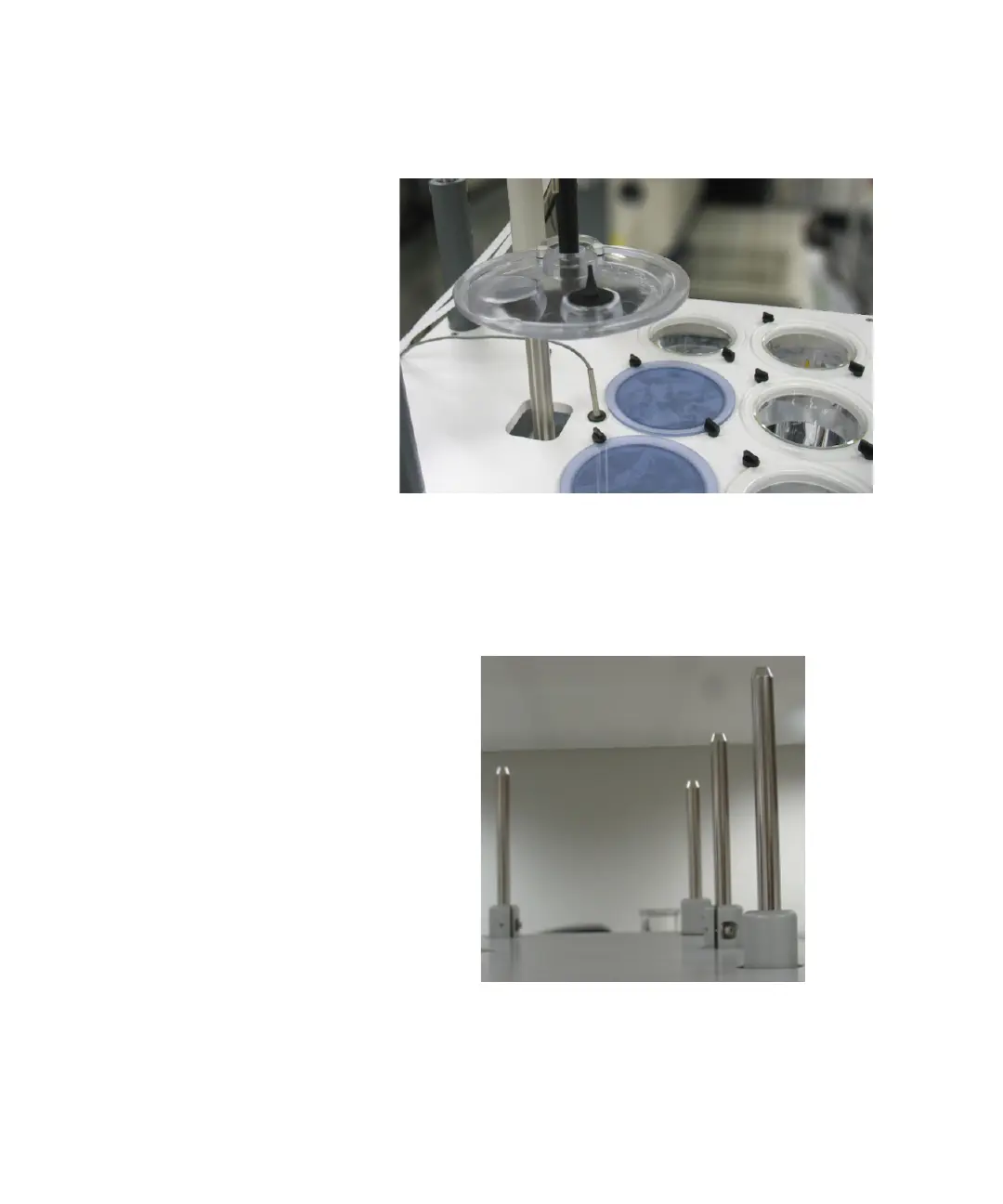

Figure 16 Installing Evaporation Covers on Shafts
5 Place a shaft locking collar on the top of each shaft and slide in down
until it rests on top of the drive unit.
Figure 17 Shaft Locking Collars
