60 708-DS / 709-DS Operator’s Manual
4 Operating the 708-DS / 709-DS
Manual Drive Unit Up / Down
The manual lift is controlled by a knob on the right side of the
instrument. To adjust the position of the drive unit, loosen the knob and
raise or lower to the desired position. Tighten the knob to secure the
drive unit in position.

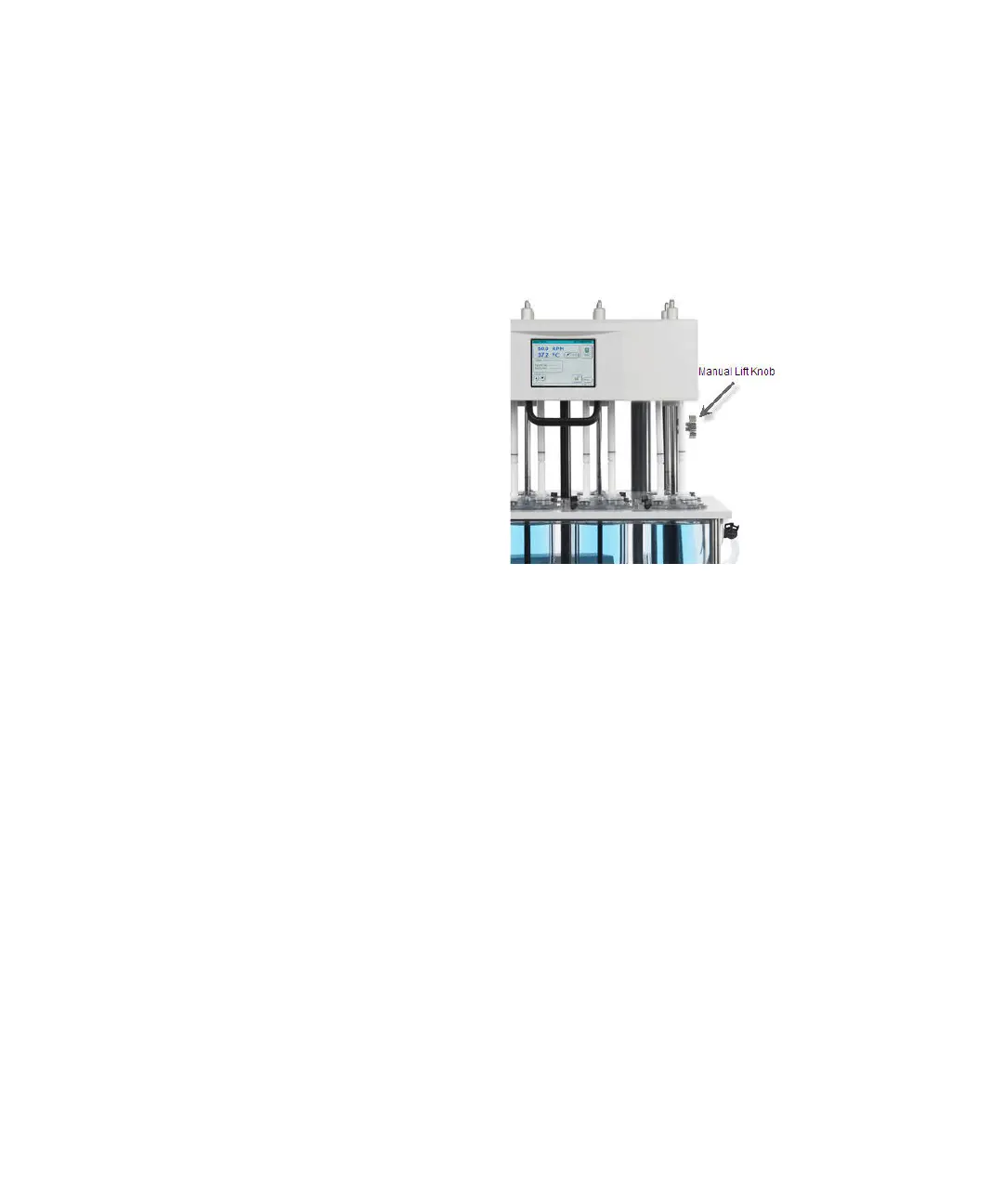

Figure 25 Manual Lift Knob
