44 708-DS / 709-DS Operator’s Manual
3 Setting Up the 708-DS / 709-DS

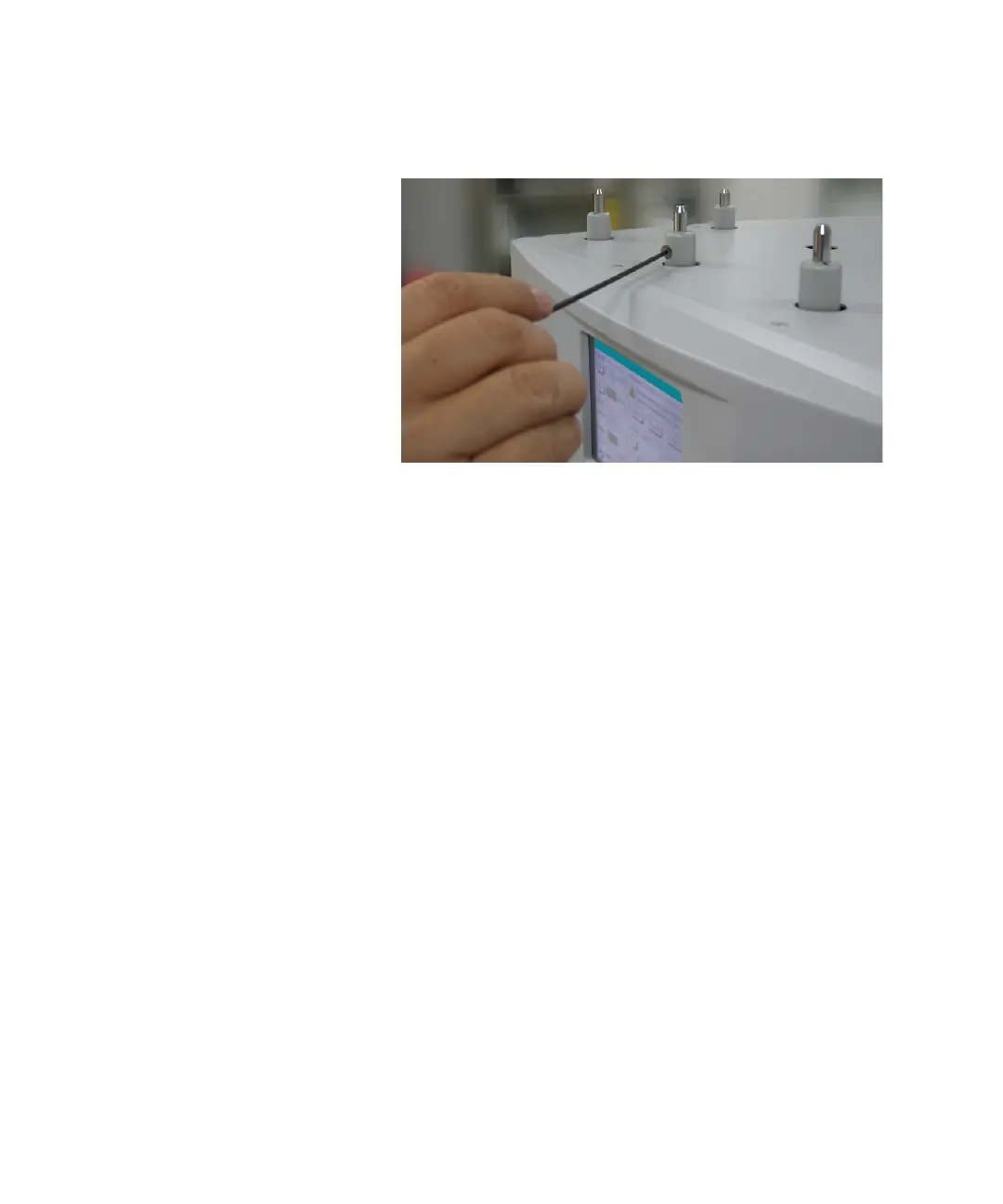

Figure 22 Tightening the Shaft Locking Collar
7 Raise the drive unit until sufficient clearance is available to move the
basket height gauge to the next position.
8 Repeat steps 2 - 7 for all remaining positions.
Setting Paddle (Apparatus 2) Heights
1 Ensure the drive unit is fully raised and the paddle shafts are pushed
up sufficiently.
2 Place a 25-mm height sphere in each vessel.
