48 708-DS / 709-DS Operator’s Manual
4 Operating the 708-DS / 709-DS
Main Screen - Options
The following sections detail the operations available from the 708-DS /
709-DS Main screen.
Main Screen - Display Parameters
The Main screen displays the system status and is updated once per
second.

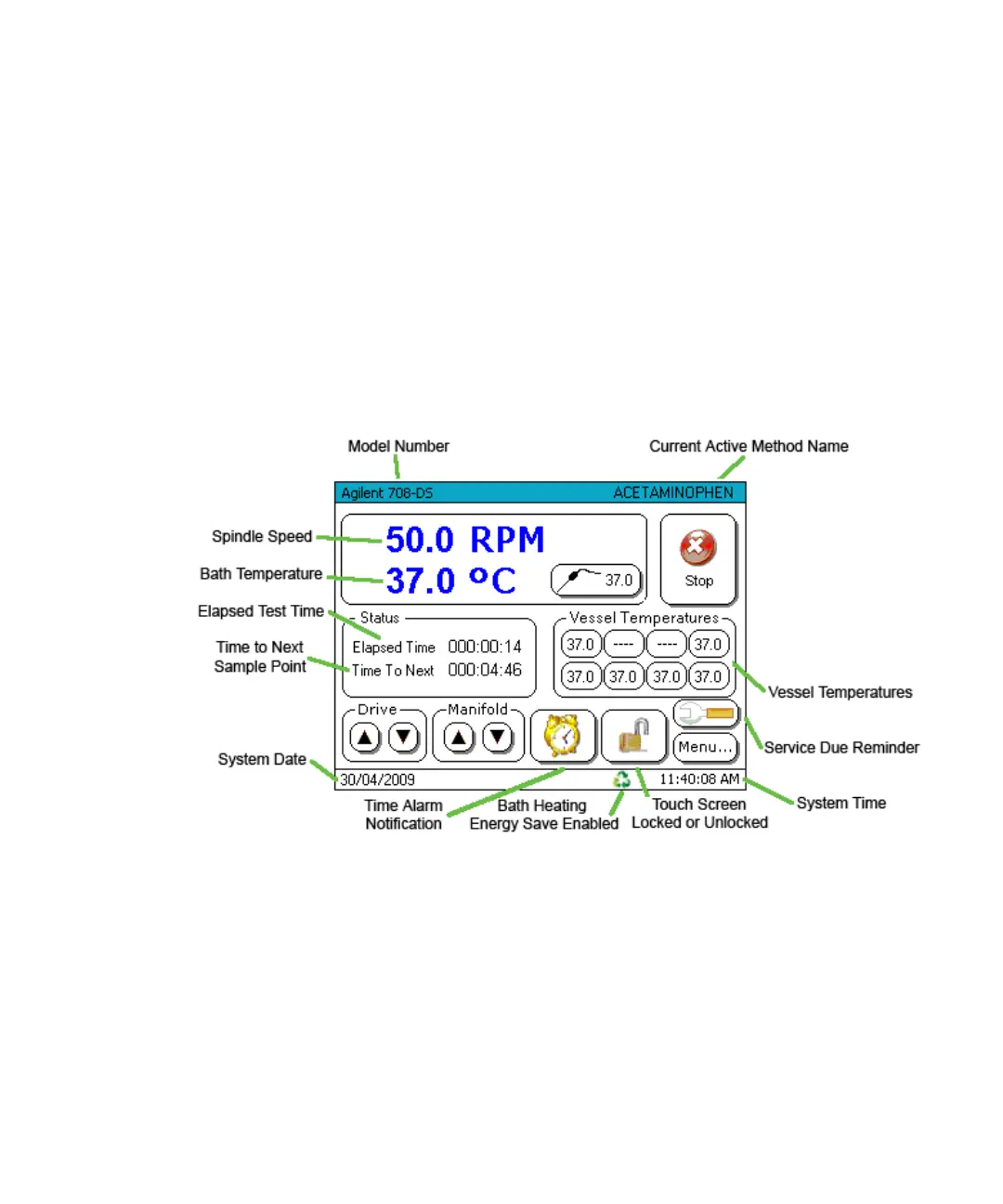

Figure 24 Main Screen - Display Parameters
