To set the level parameters as required:
1 Press the LEVELS softkey to enter the Levels menu.
2 Move the entry focus to O
FFSET
and A
MPLITUDE
and in the MODIFY
area select H
IGH
-L
OW
.
3 Move the entry focus to the high level entry field and press 2 + . + 5 +
ENTER for the high level.
4 Move down the entry focus to the low level entry field and press 0 +
ENTER.

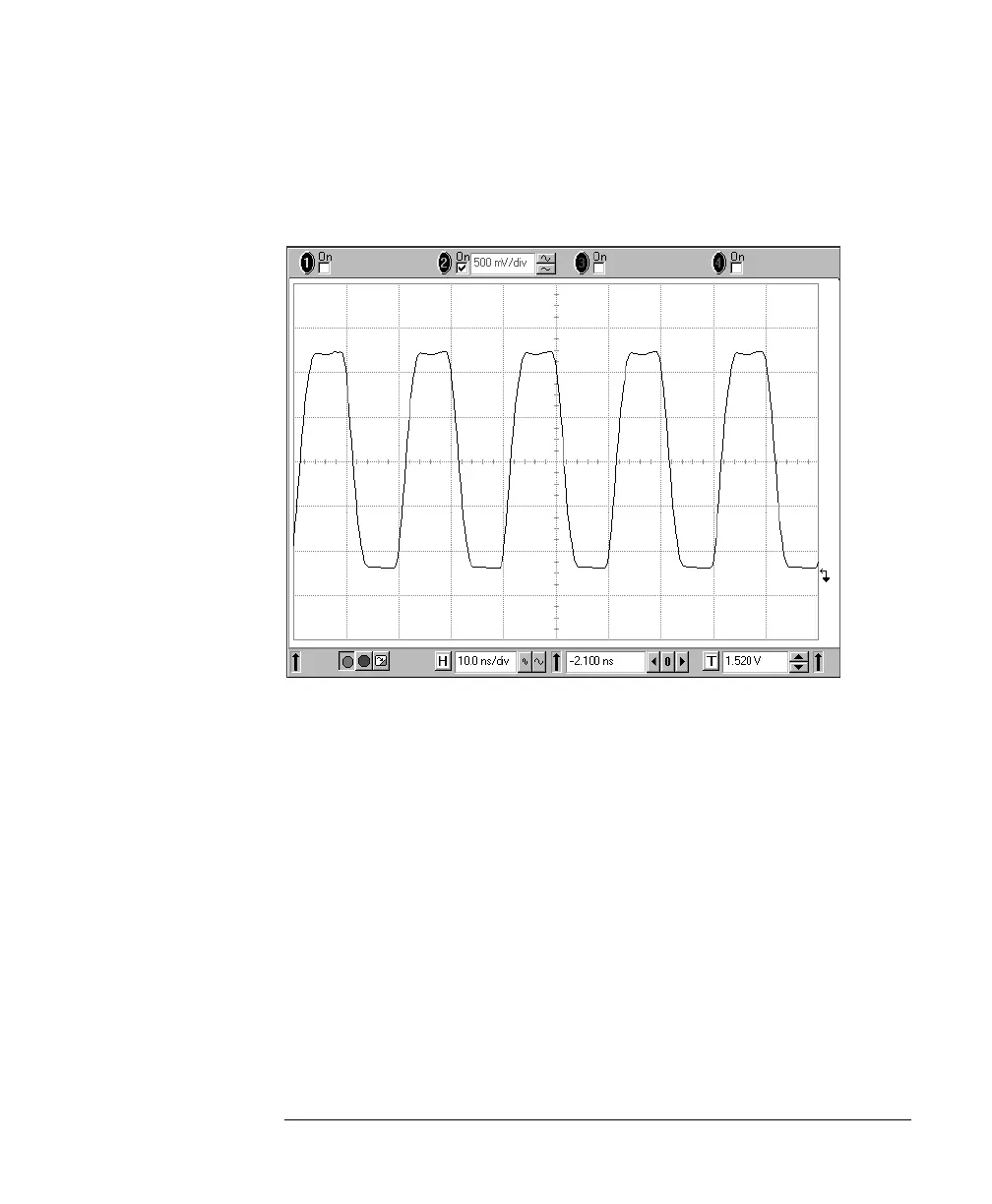

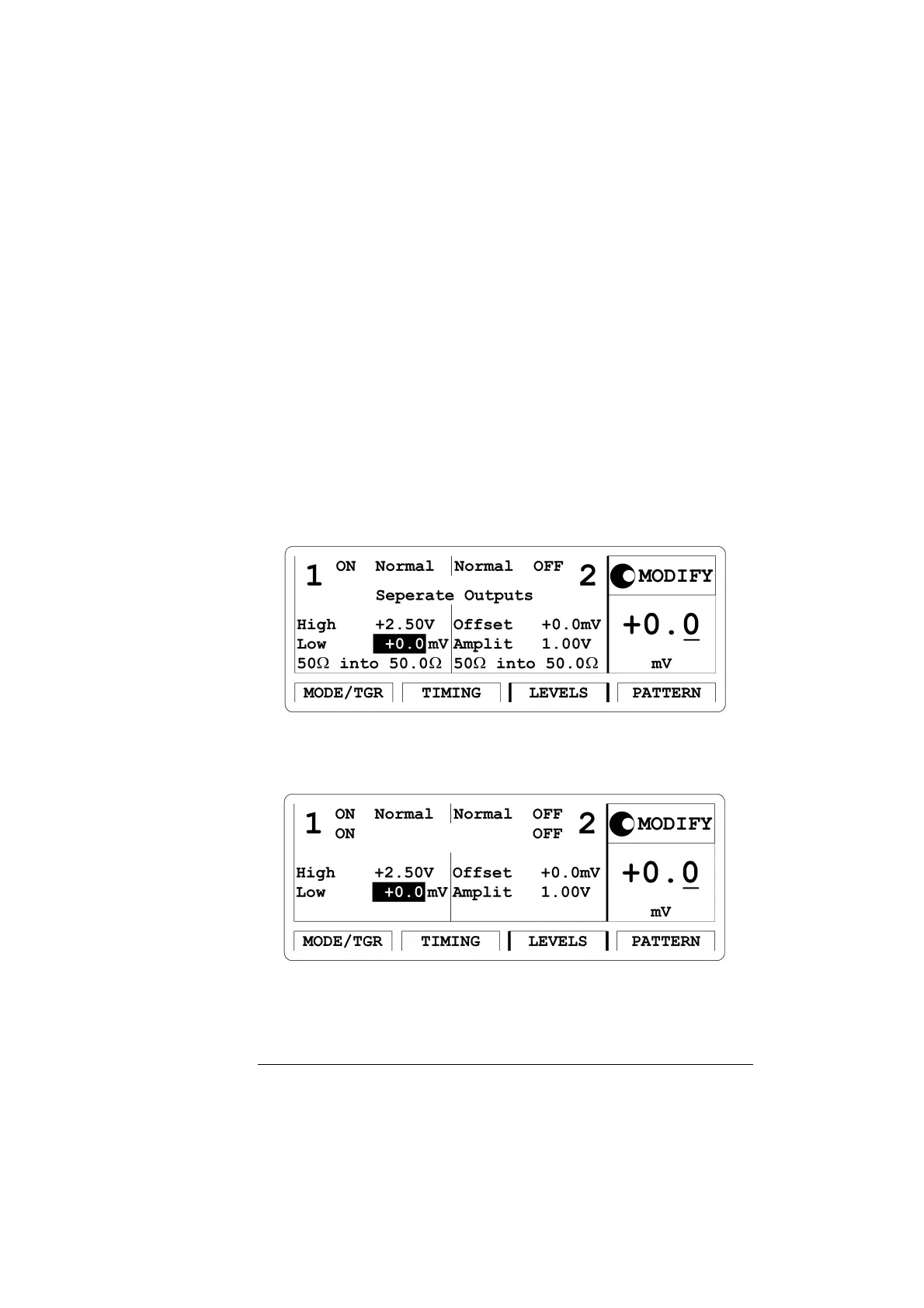

For the Agilent 81104A or 81110A with an 81105 module installed, the
screen looks as follows.
For the Agilent 81110A with an 81112 module installed, the screen
looks as follows.
