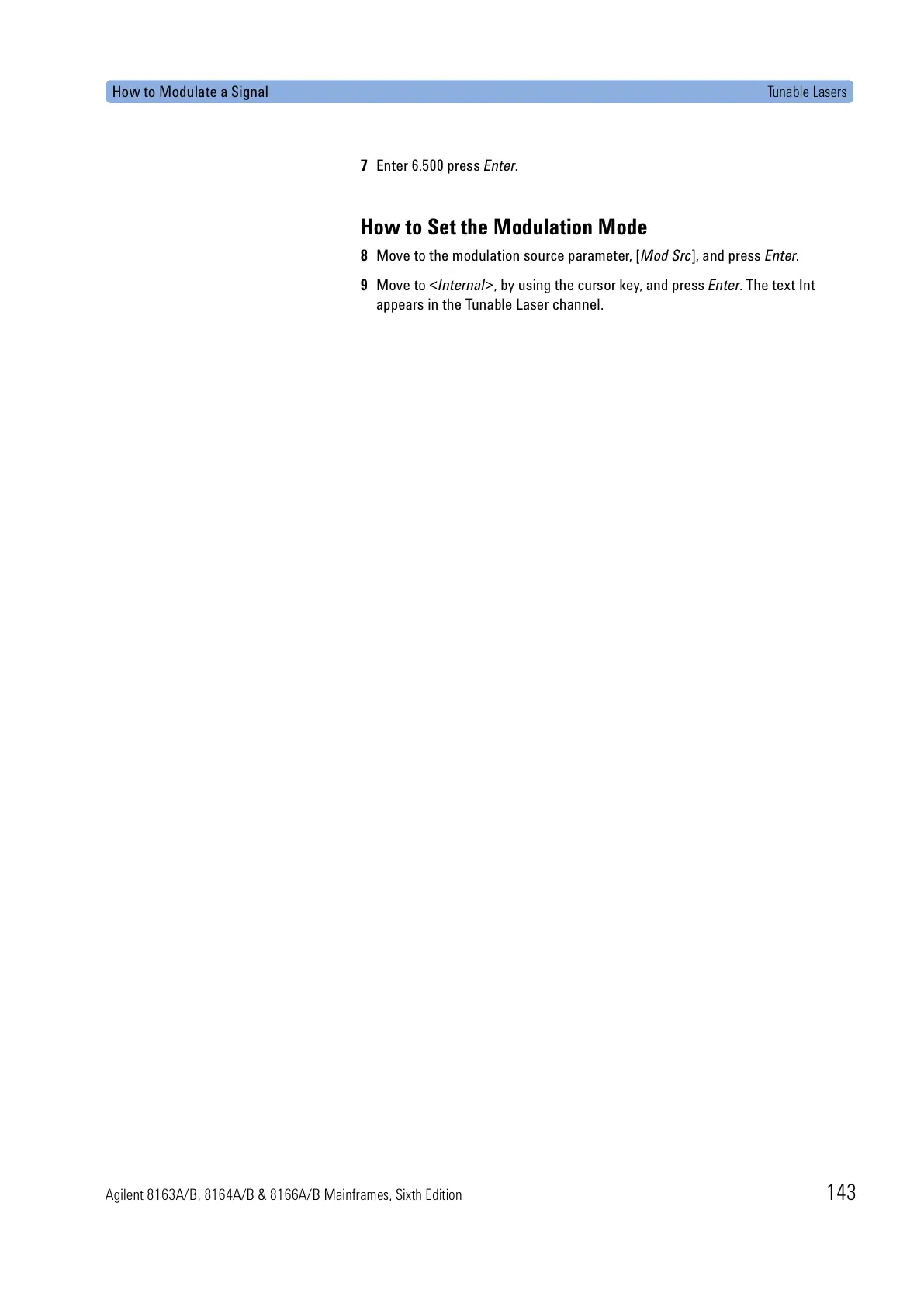

How to Modulate a Signal Tunable Lasers

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 143

7 Enter 6.500 press Enter.

How to Set the Modulation Mode

8 Move to the modulation source parameter, [Mod Src], and press Enter.

9 Move to <Internal>, by using the cursor key, and press Enter. The text Int

appears in the Tunable Laser channel.
