How to Measure Power Power Measurement

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 93

• a source is connected to the Power Meter’s input connector,

• the fiber connected to the Power Meter’s input connector is collecting light, or

• the Power Meter receives ambient light because the input connector is

uncovered.

Press Enter and start again at step 1.

4 When the zeroing operation finishes, press the [Close] softkey to close the

menu.

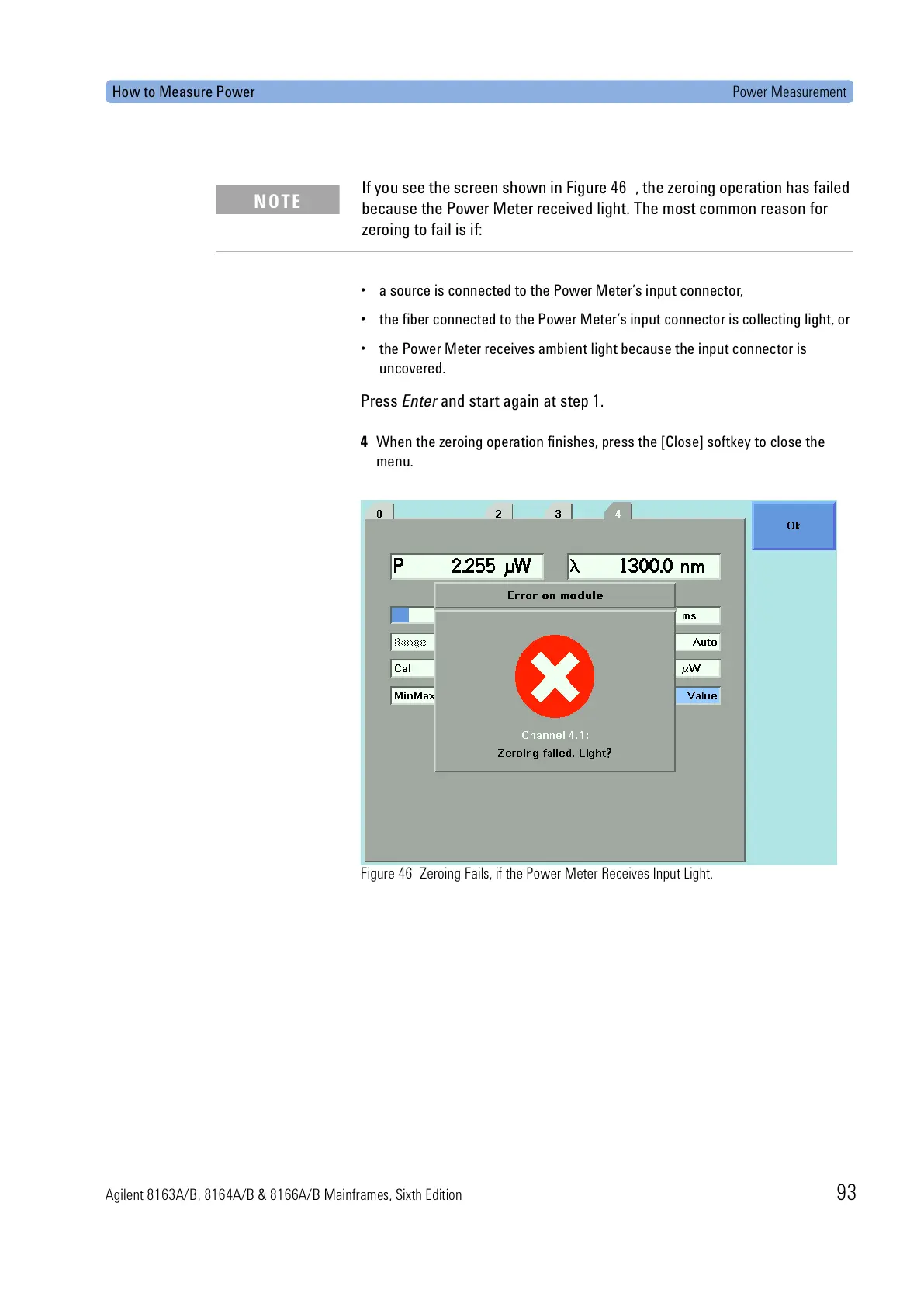

Figure 46 Zeroing Fails, if the Power Meter Receives Input Light.

If you see the screen shown in Figure 46 , the zeroing operation has failed

because the Power Meter received light. The most common reason for

zeroing to fail is if:

NOTE
