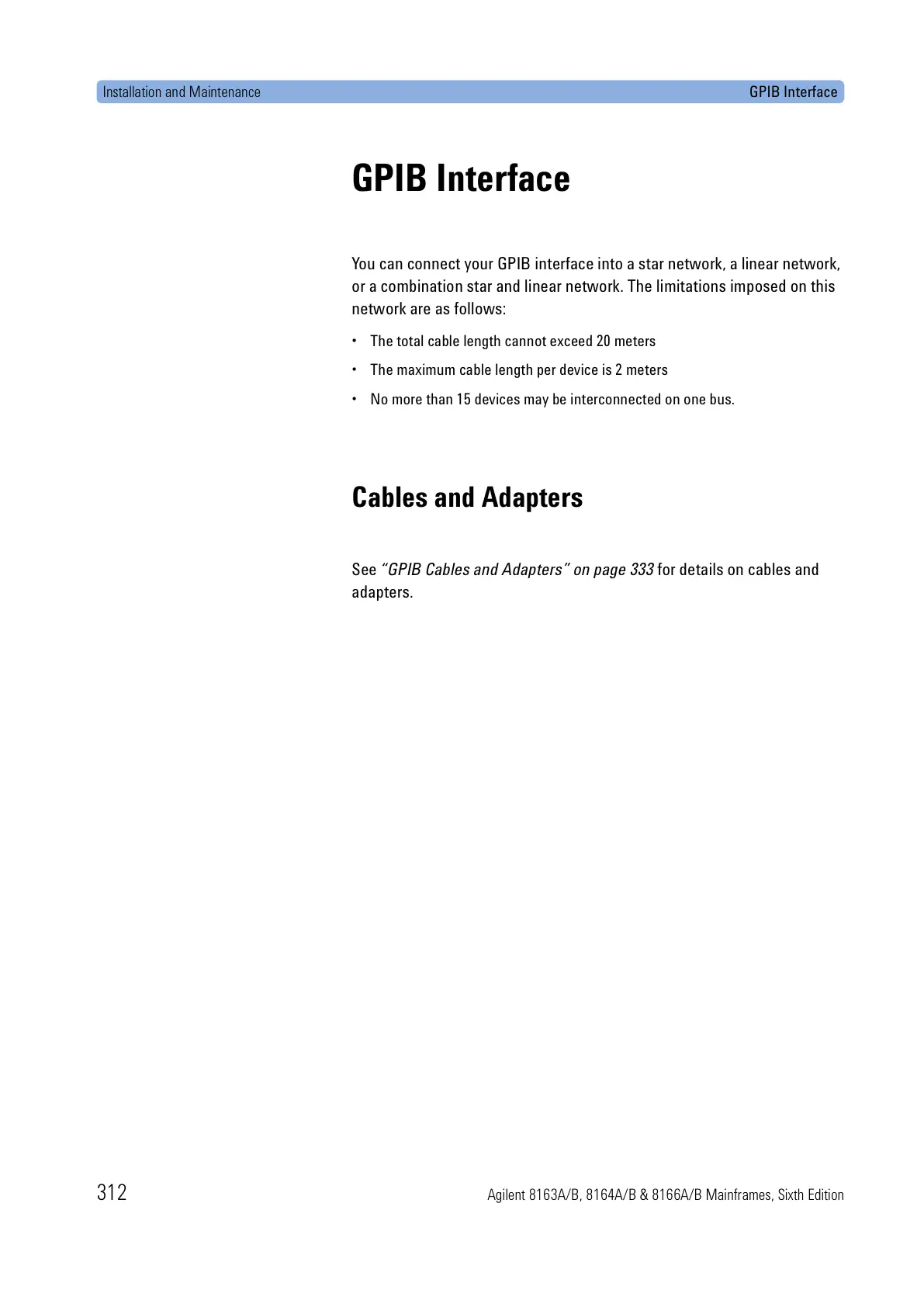

Installation and Maintenance GPIB Interface

312 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

GPIB Interface

You can connect your GPIB interface into a star network, a linear network,

or a combination star and linear network. The limitations imposed on this

network are as follows:

• The total cable length cannot exceed 20 meters

• The maximum cable length per device is 2 meters

• No more than 15 devices may be interconnected on one bus.

Cables and Adapters

See “GPIB Cables and Adapters” on page 333 for details on cables and

adapters.
