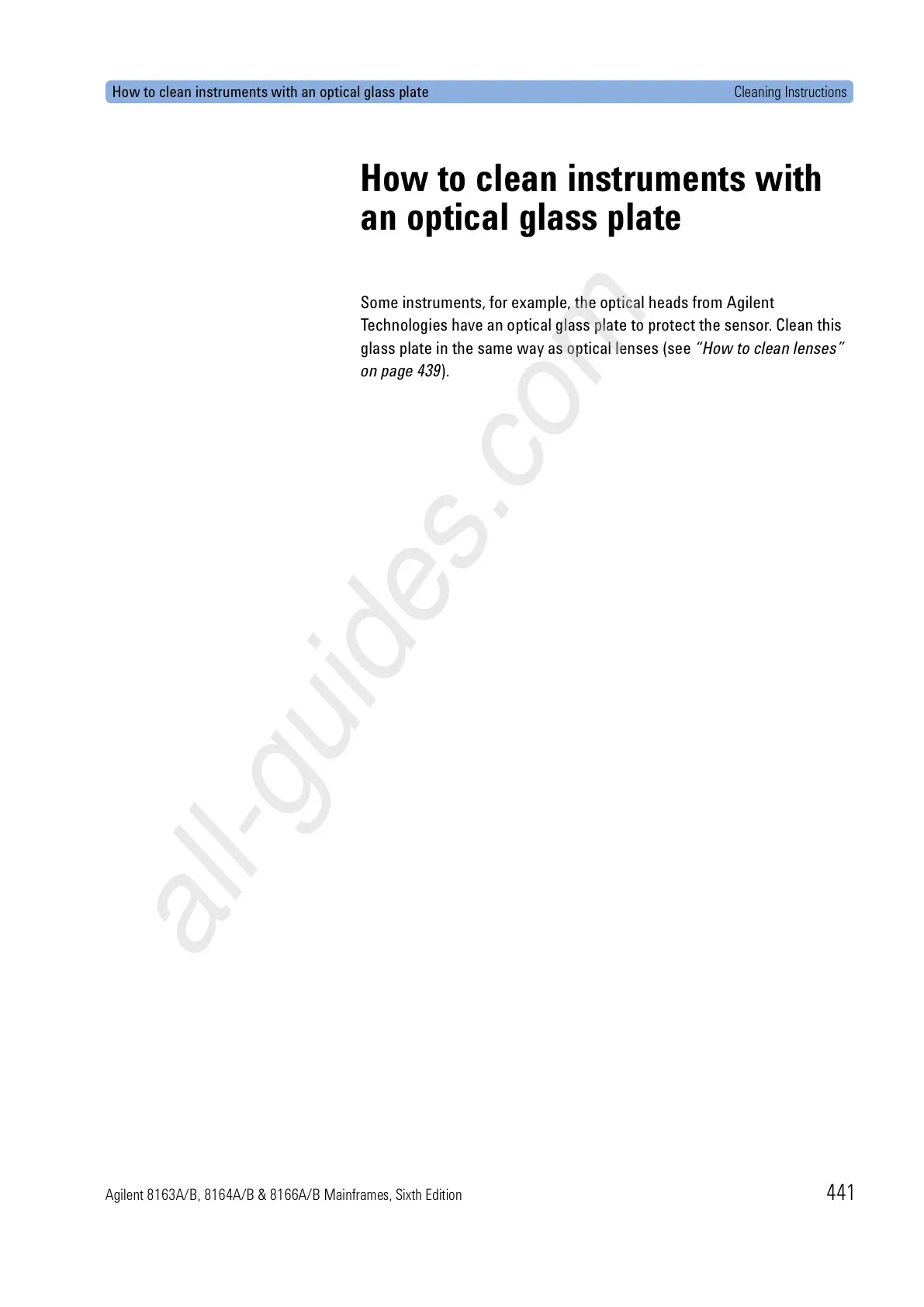

How to clean instruments with an optical glass plate Cleaning Instructions

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 441

How to clean instruments with

an optical glass plate

Some instruments, for example, the optical heads from Agilent

Technologies have an optical glass plate to protect the sensor. Clean this

glass plate in the same way as optical lenses (see “How to clean lenses”

on page 439).
