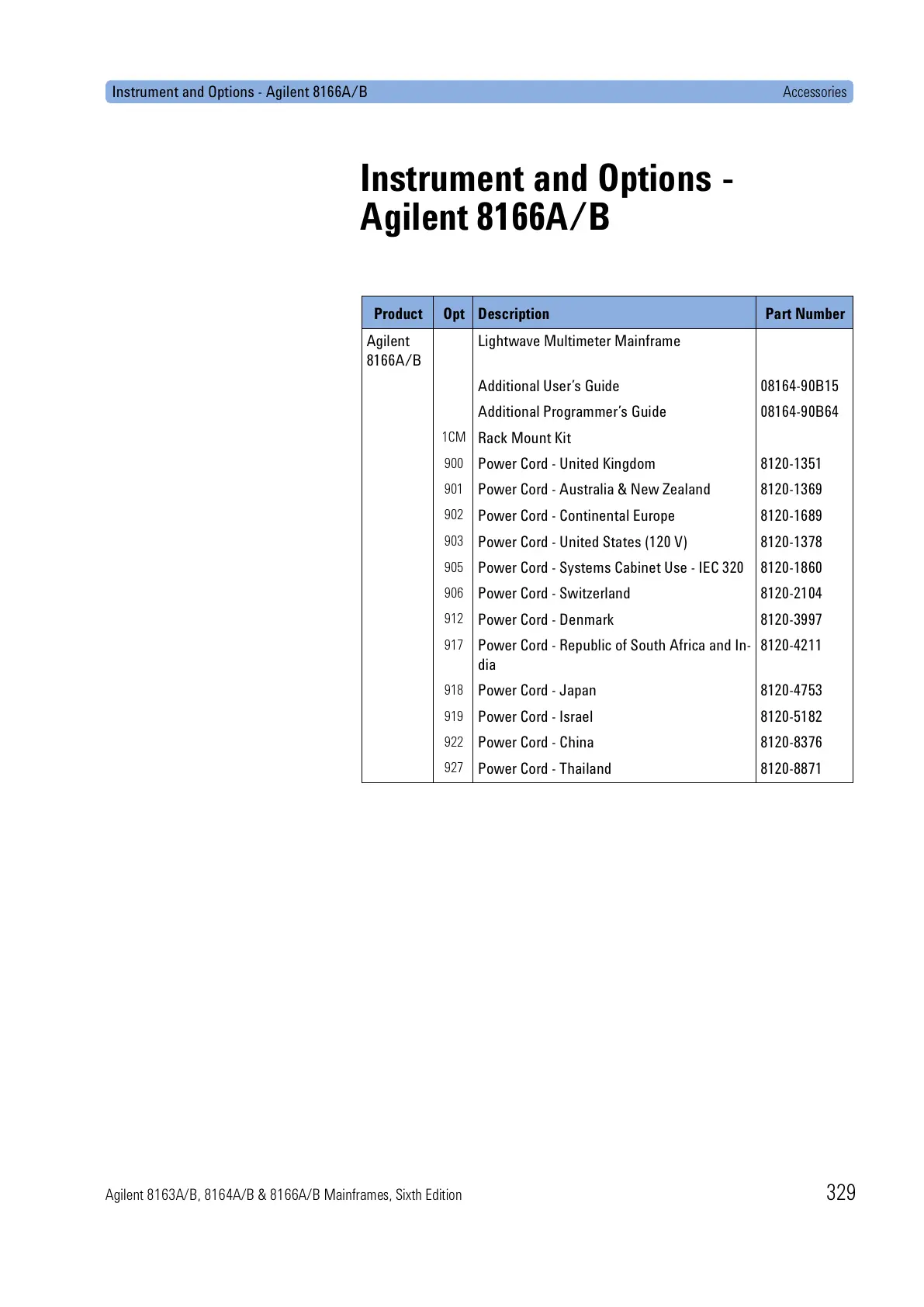

Instrument and Options - Agilent 8166A/B Accessories

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 329

Instrument and Options -

Agilent 8166A/B

Product Opt Description Part Number

Agilent

8166A/B

Lightwave Multimeter Mainframe

Additional User’s Guide 08164-90B15

Additional Programmer’s Guide 08164-90B64

1CM

Rack Mount Kit

900

Power Cord - United Kingdom 8120-1351

901

Power Cord - Australia & New Zealand 8120-1369

902

Power Cord - Continental Europe 8120-1689

903

Power Cord - United States (120 V) 8120-1378

905

Power Cord - Systems Cabinet Use - IEC 320 8120-1860

906

Power Cord - Switzerland 8120-2104

912

Power Cord - Denmark 8120-3997

917

Power Cord - Republic of South Africa and In-

dia

8120-4211

918

Power Cord - Japan 8120-4753

919

Power Cord - Israel 8120-5182

922

Power Cord - China 8120-8376

927

Power Cord - Thailand 8120-8871
