The PACT Application Applications
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 273
The PACT Measurement Screen, as shown in Figure 168 , appears. The
number of samples that each Power Meter will record and the output laser
power are displayed. If <Continuous> was selected as the sweep
[Method], the sweep speed, [VSweep], is displayed.

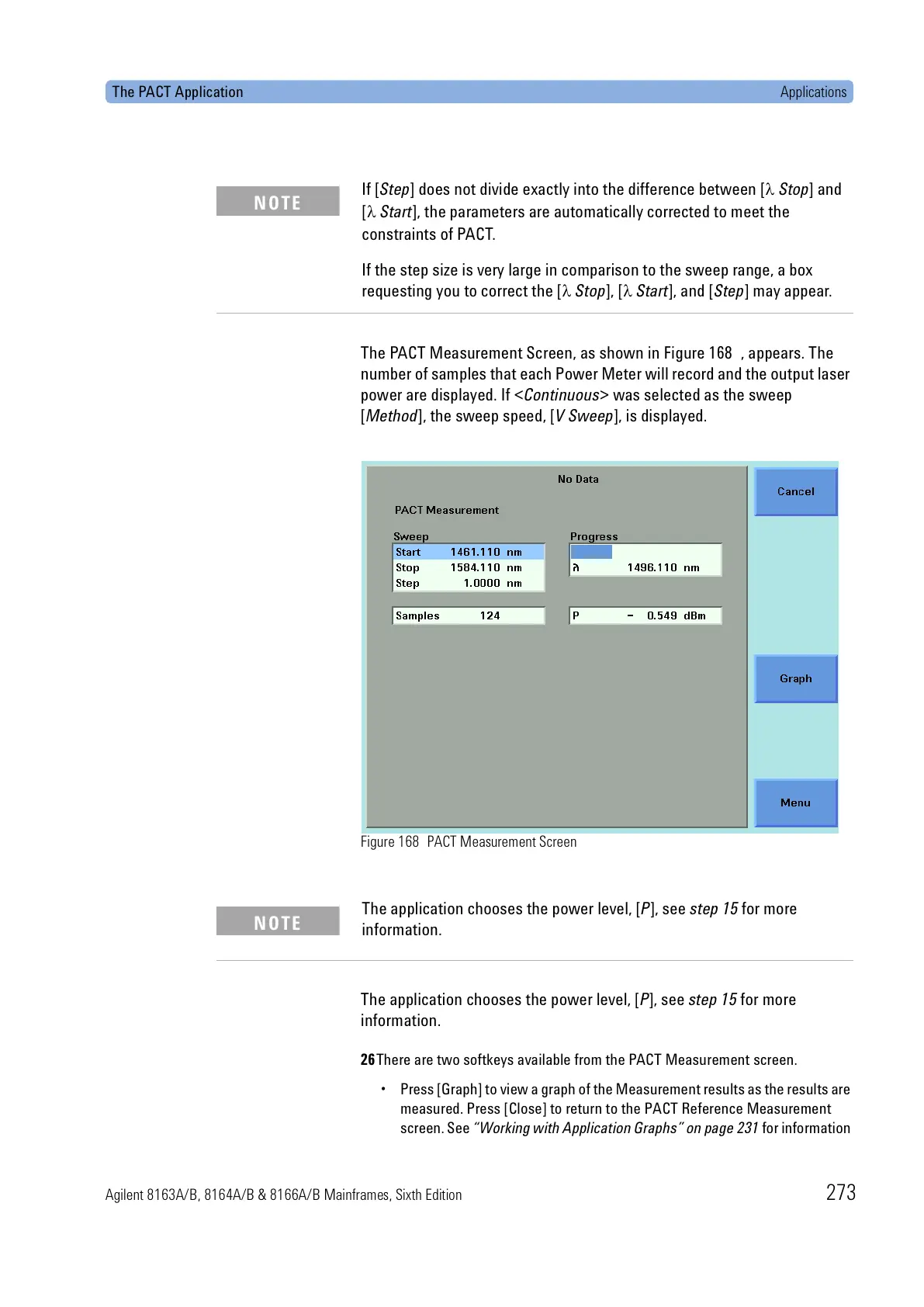

Figure 168 PACT Measurement Screen
The application chooses the power level, [P], see step 15 for more
information.
26There are two softkeys available from the PACT Measurement screen.
• Press [Graph] to view a graph of the Measurement results as the results are
measured. Press [Close] to return to the PACT Reference Measurement
screen. See “Working with Application Graphs” on page 231 for information
If [Step] does not divide exactly into the difference between [λ Stop] and
[λ Start], the parameters are automatically corrected to meet the
constraints of PACT.
If the step size is very large in comparison to the sweep range, a box
requesting you to correct the [λ Stop], [λ Start], and [Step] may appear.
NOTE
The application chooses the power level, [P], see step 15 for more
information.
NOTE
