Additional Information Using the System Utilities

74 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

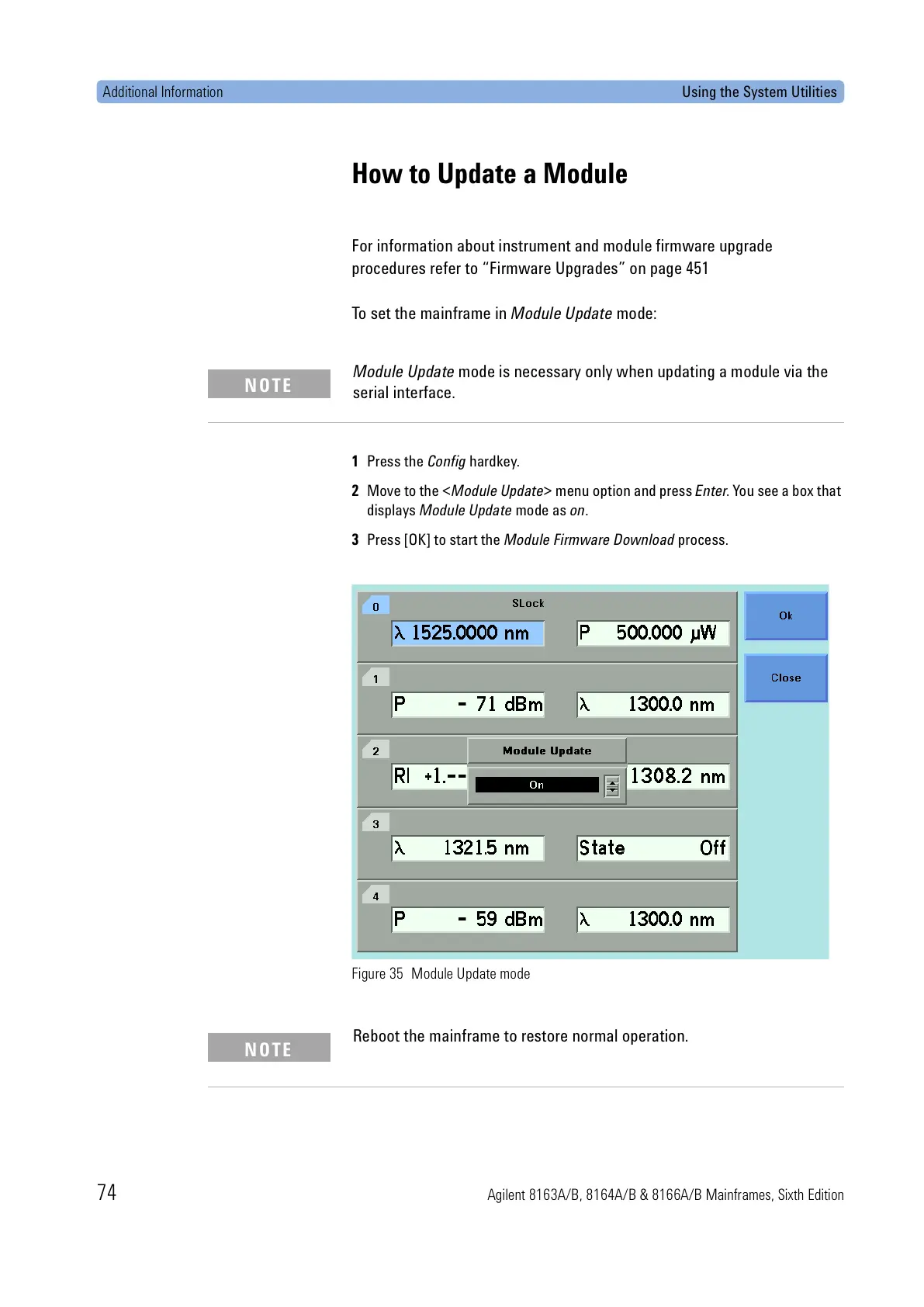

How to Update a Module

For information about instrument and module firmware upgrade

procedures refer to “Firmware Upgrades” on page 451

To set the mainframe in Module Update mode:

1 Press the Config hardkey.

2 Move to the <Module Update> menu option and press Enter. You see a box that

displays Module Update mode as on.

3 Press [OK] to start the Module Firmware Download process.

Figure 35 Module Update mode

Module Update mode is necessary only when updating a module via the

serial interface.

NOTE

Reboot the mainframe to restore normal operation.

NOTE
