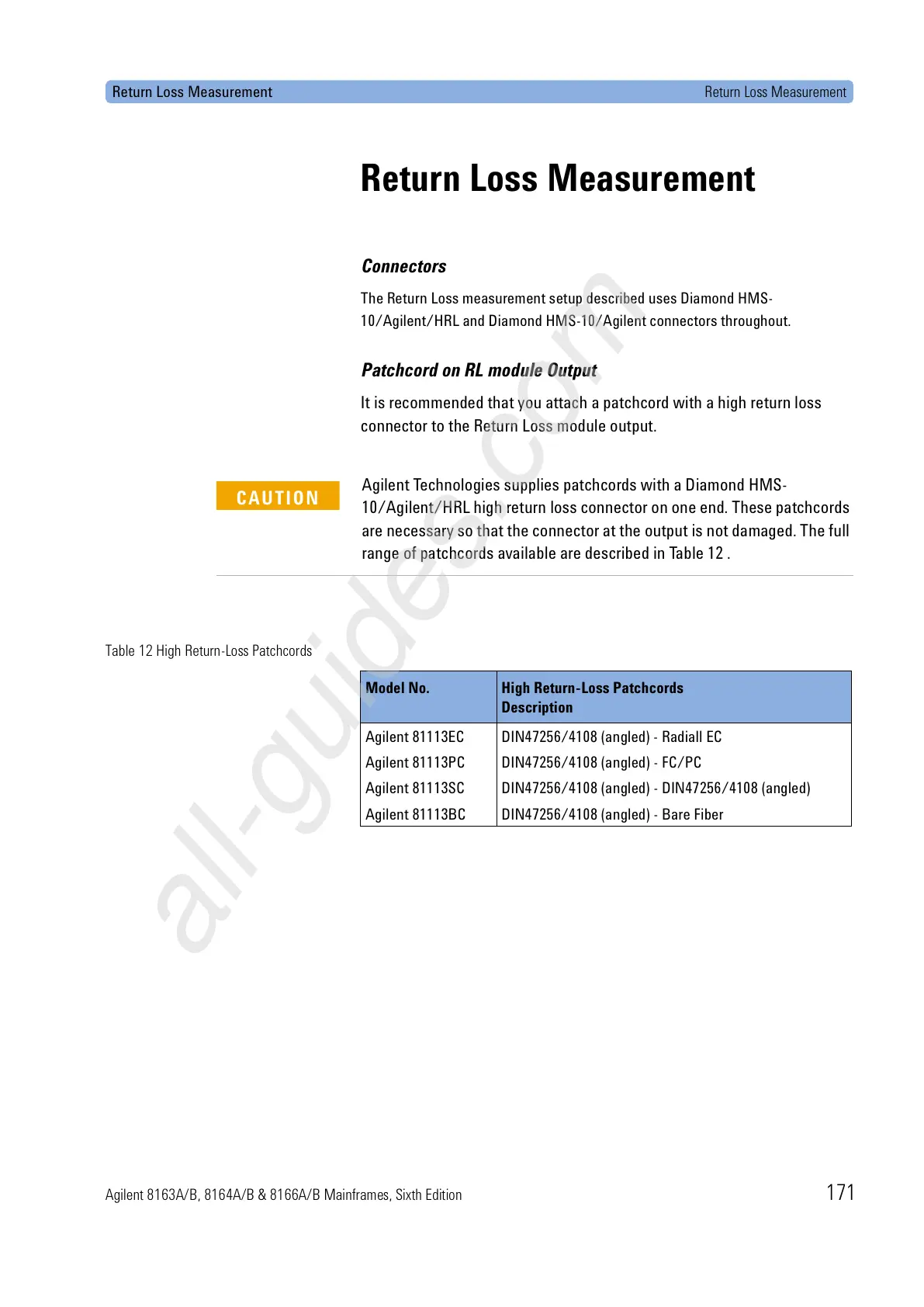

Return Loss Measurement Return Loss Measurement
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 171
Return Loss Measurement
Connectors
The Return Loss measurement setup described uses Diamond HMS-
10/Agilent/HRL and Diamond HMS-10/Agilent connectors throughout.
Patchcord on RL module Output
It is recommended that you attach a patchcord with a high return loss
connector to the Return Loss module output.
Agilent Technologies supplies patchcords with a Diamond HMS-
10/Agilent/HRL high return loss connector on one end. These patchcords
are necessary so that the connector at the output is not damaged. The full
range of patchcords available are described in Table 12 .
CAUTION
Table 12 High Return-Loss Patchcords
Model No. High Return-Loss Patchcords
Description
Agilent 81113EC DIN47256/4108 (angled) - Radiall EC
Agilent 81113PC DIN47256/4108 (angled) - FC/PC
Agilent 81113SC DIN47256/4108 (angled) - DIN47256/4108 (angled)
Agilent 81113BC DIN47256/4108 (angled) - Bare Fiber
