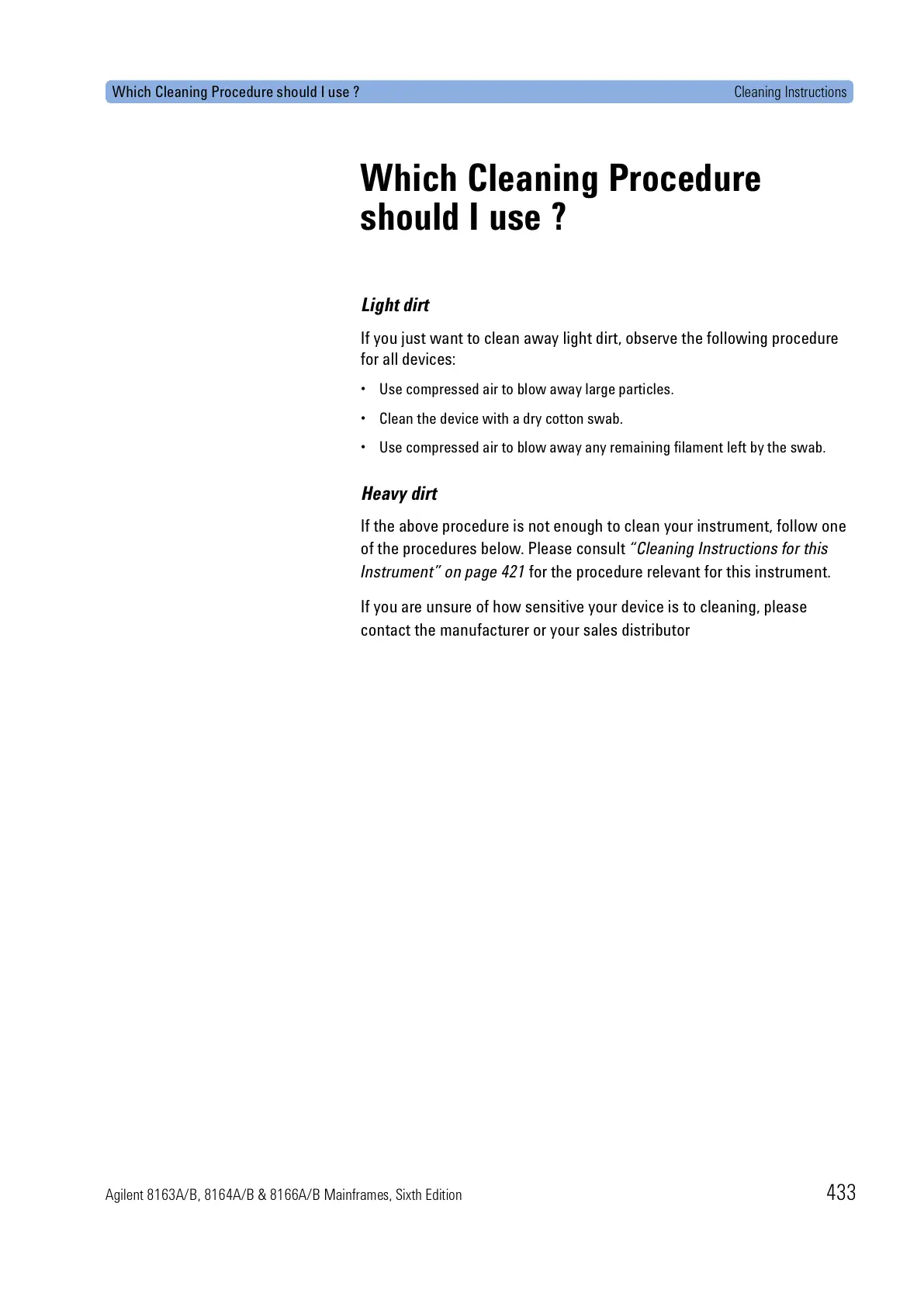

Which Cleaning Procedure should I use ? Cleaning Instructions

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 433

Which Cleaning Procedure

should I use ?

Light dirt

If you just want to clean away light dirt, observe the following procedure

for all devices:

• Use compressed air to blow away large particles.

• Clean the device with a dry cotton swab.

• Use compressed air to blow away any remaining filament left by the swab.

Heavy dirt

If the above procedure is not enough to clean your instrument, follow one

of the procedures below. Please consult “Cleaning Instructions for this

Instrument” on page 421 for the procedure relevant for this instrument.

If you are unsure of how sensitive your device is to cleaning, please

contact the manufacturer or your sales distributor
