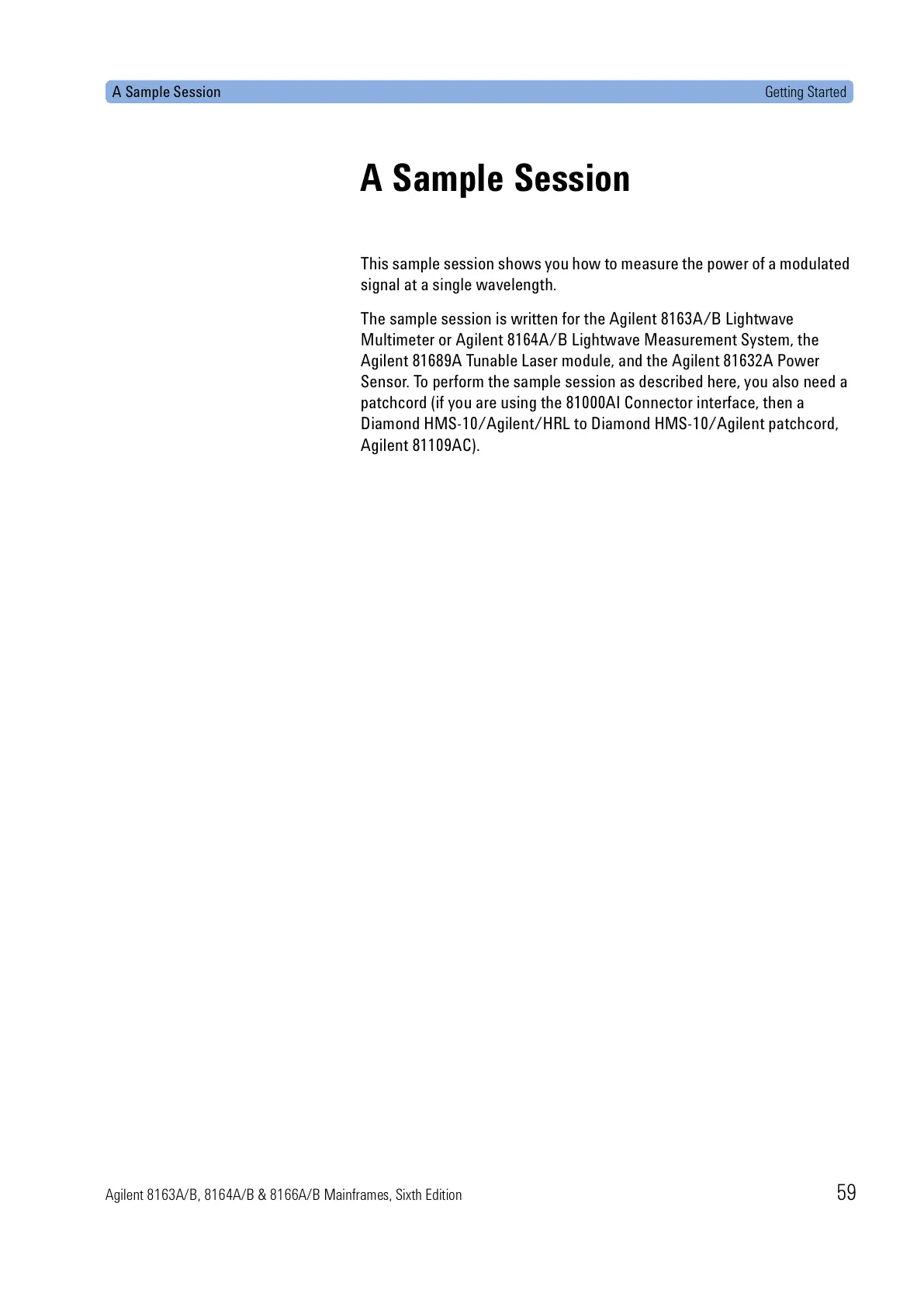

A Sample Session Getting Started

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 59

A Sample Session

This sample session shows you how to measure the power of a modulated

signal at a single wavelength.

The sample session is written for the Agilent 8163A/B Lightwave

Multimeter or Agilent 8164A/B Lightwave Measurement System, the

Agilent 81689A Tunable Laser module, and the Agilent 81632A Power

Sensor. To perform the sample session as described here, you also need a

patchcord (if you are using the 81000AI Connector interface, then a

Diamond HMS-10/Agilent/HRL to Diamond HMS-10/Agilent patchcord,

Agilent 81109AC).
