Applications The PACT Application

276 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Analysing a PACT Measurement

You can access the PACT Analysis screen after the PACT Measurement

completes, by completing the following instructions:

28You cannot access the PACT Analysis screen from the graph. If you are viewing

the graph, press [Close].

29Press [Setup]. The Logging Analysis screen appears as shown in Figure 152 .

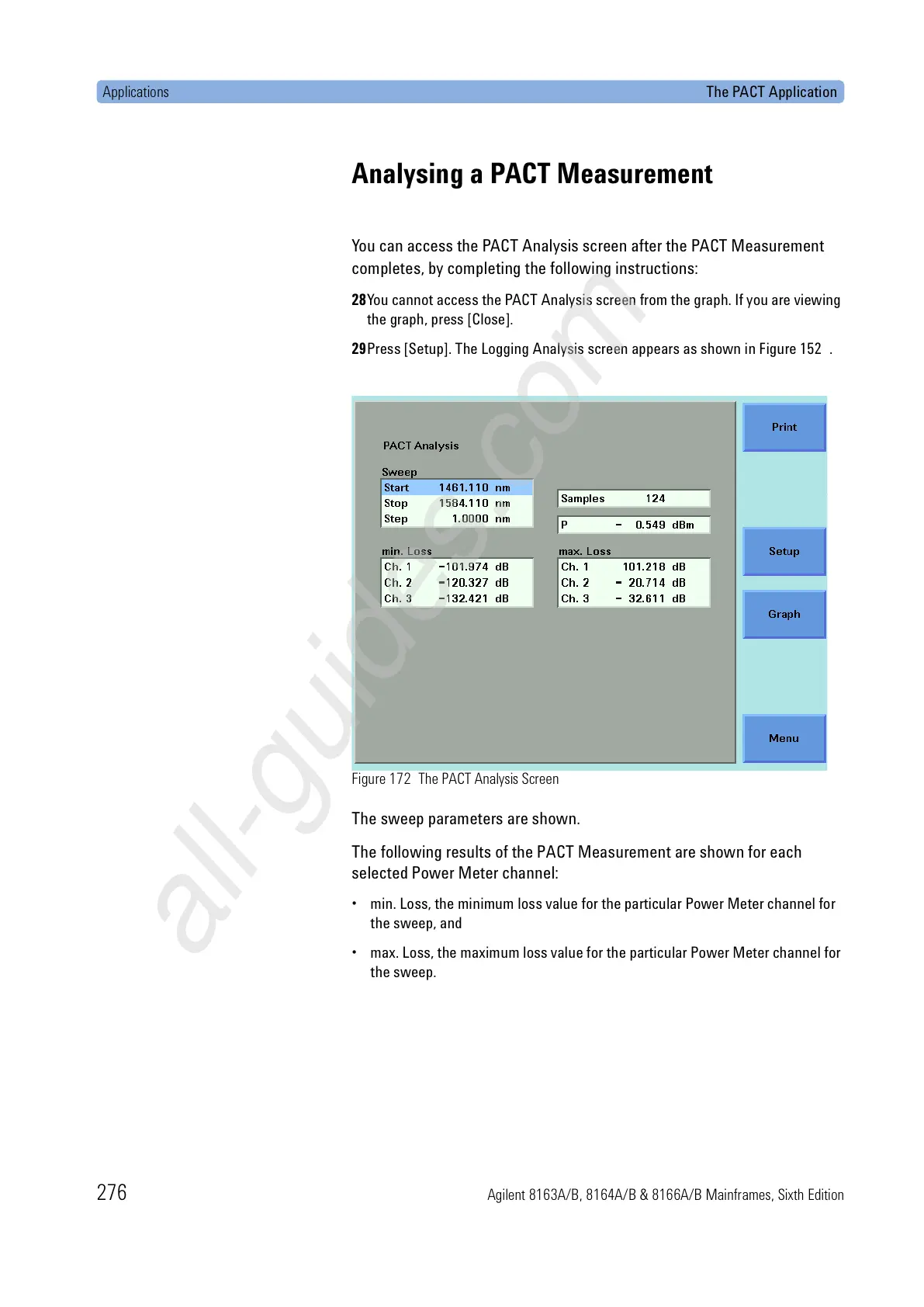

Figure 172 The PACT Analysis Screen

The sweep parameters are shown.

The following results of the PACT Measurement are shown for each

selected Power Meter channel:

• min. Loss, the minimum loss value for the particular Power Meter channel for

the sweep, and

• max. Loss, the maximum loss value for the particular Power Meter channel for

the sweep.
