Applications The Logging Application

244 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

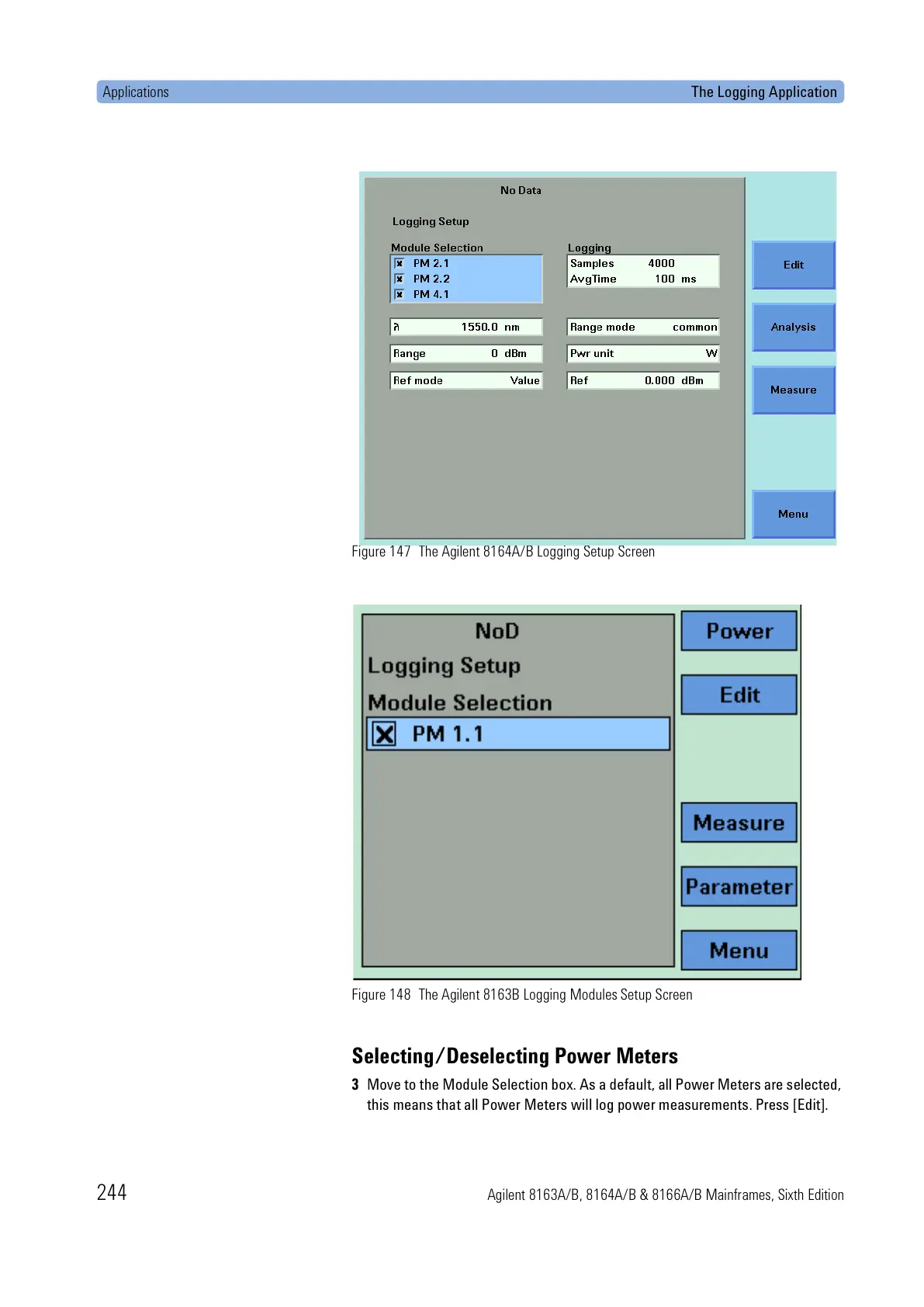

Figure 147 The Agilent 8164A/B Logging Setup Screen

Figure 148 The Agilent 8163B Logging Modules Setup Screen

Selecting/Deselecting Power Meters

3 Move to the Module Selection box. As a default, all Power Meters are selected,

this means that all Power Meters will log power measurements. Press [Edit].
