The Logging Application Applications

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 243

How to Set Up a Logging Function

To set up a logging function:

1 Press the Appl hardkey. The Applications menu, as shown in Figure 146 ,

appears.

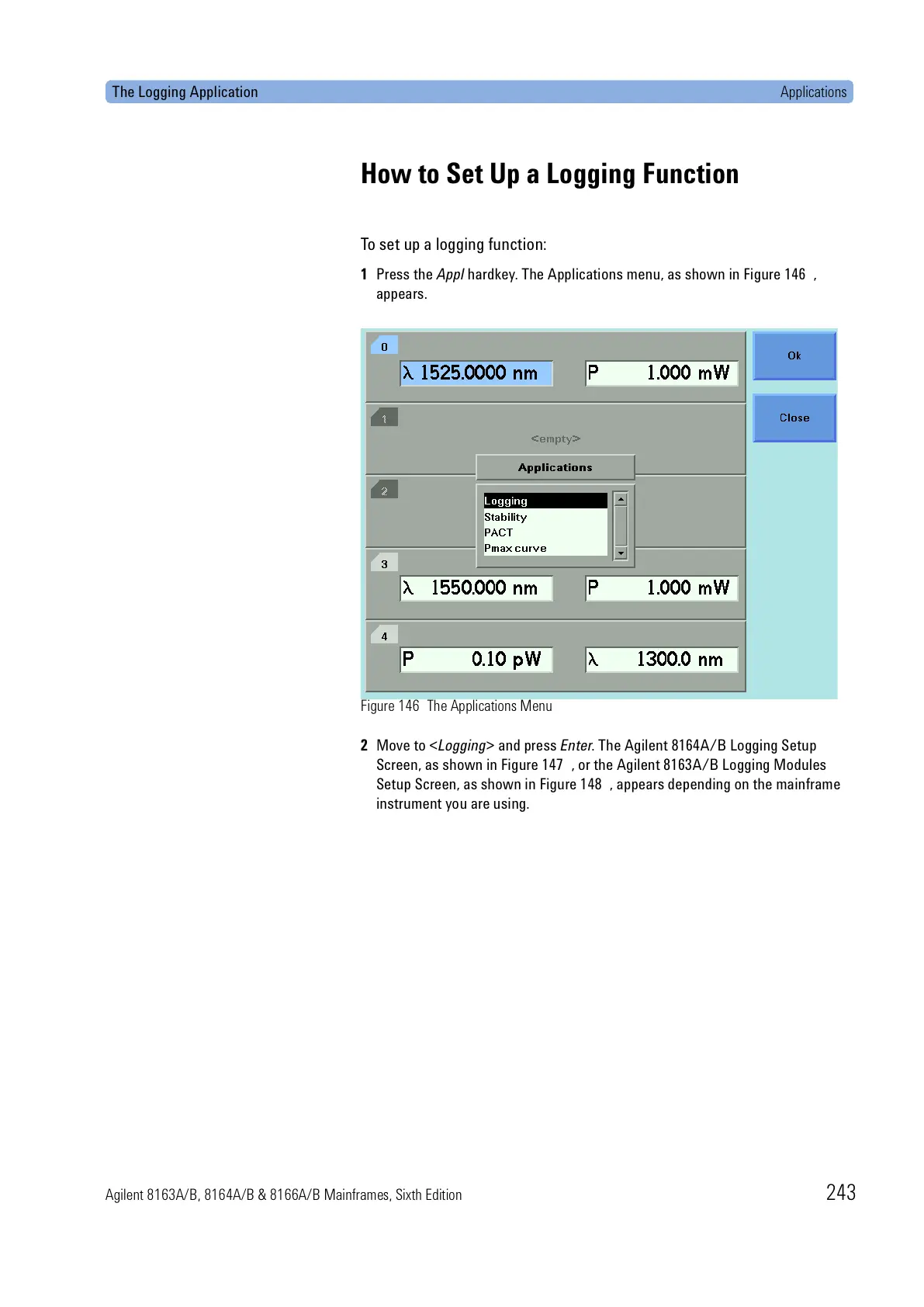

Figure 146 The Applications Menu

2 Move to <Logging> and press Enter. The Agilent 8164A/B Logging Setup

Screen, as shown in Figure 147 , or the Agilent 8163A/B Logging Modules

Setup Screen, as shown in Figure 148 , appears depending on the mainframe

instrument you are using.
