Getting Started A Description of the User Interface

50 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

How to Get Help

Press the Help hardkey any time you need more information. The

instrument displays online documentation for the currently selected

parameter.

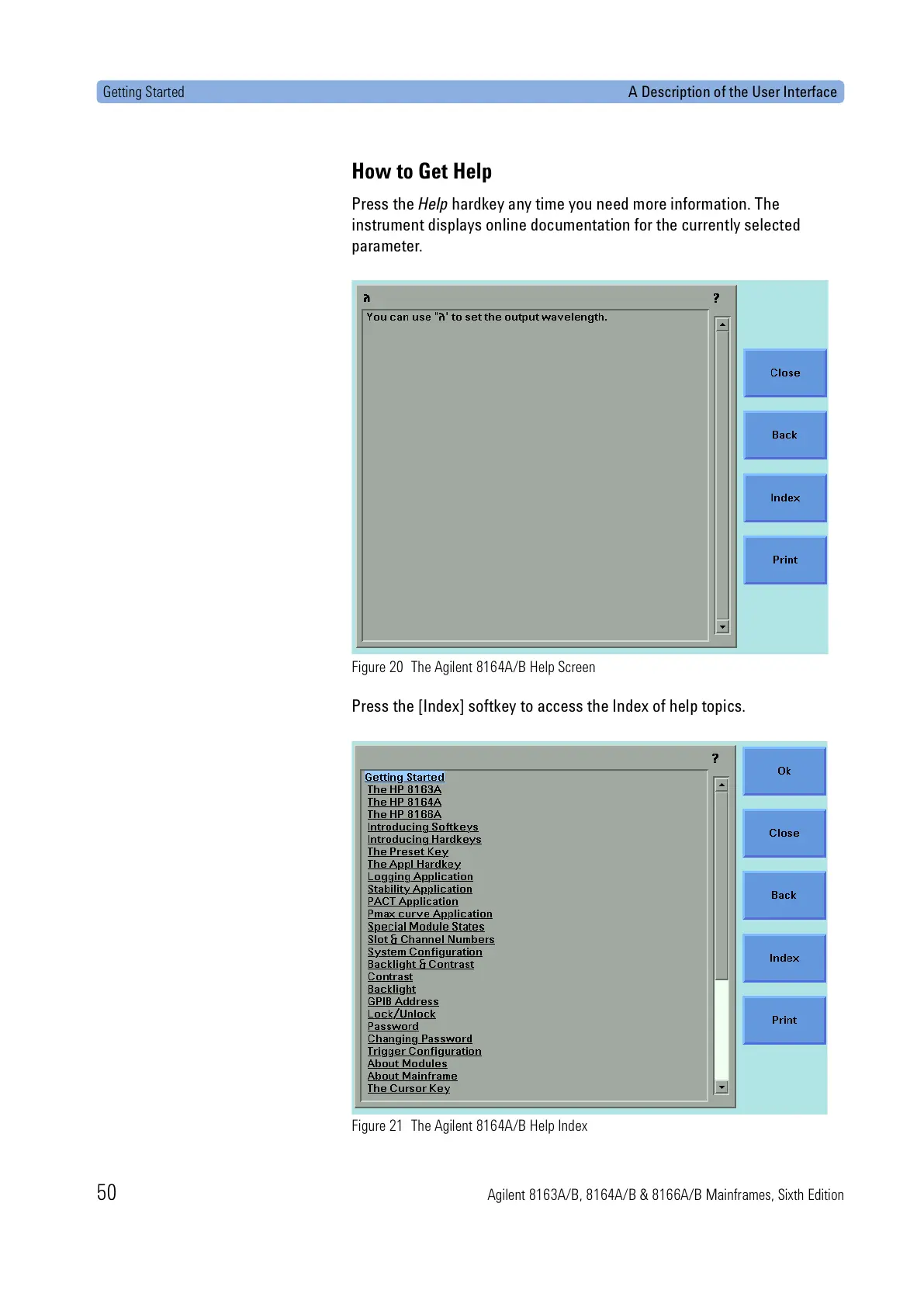

Figure 20 The Agilent 8164A/B Help Screen

Press the [Index] softkey to access the Index of help topics.

Figure 21 The Agilent 8164A/B Help Index
