Installation and Maintenance Using Modules

304 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

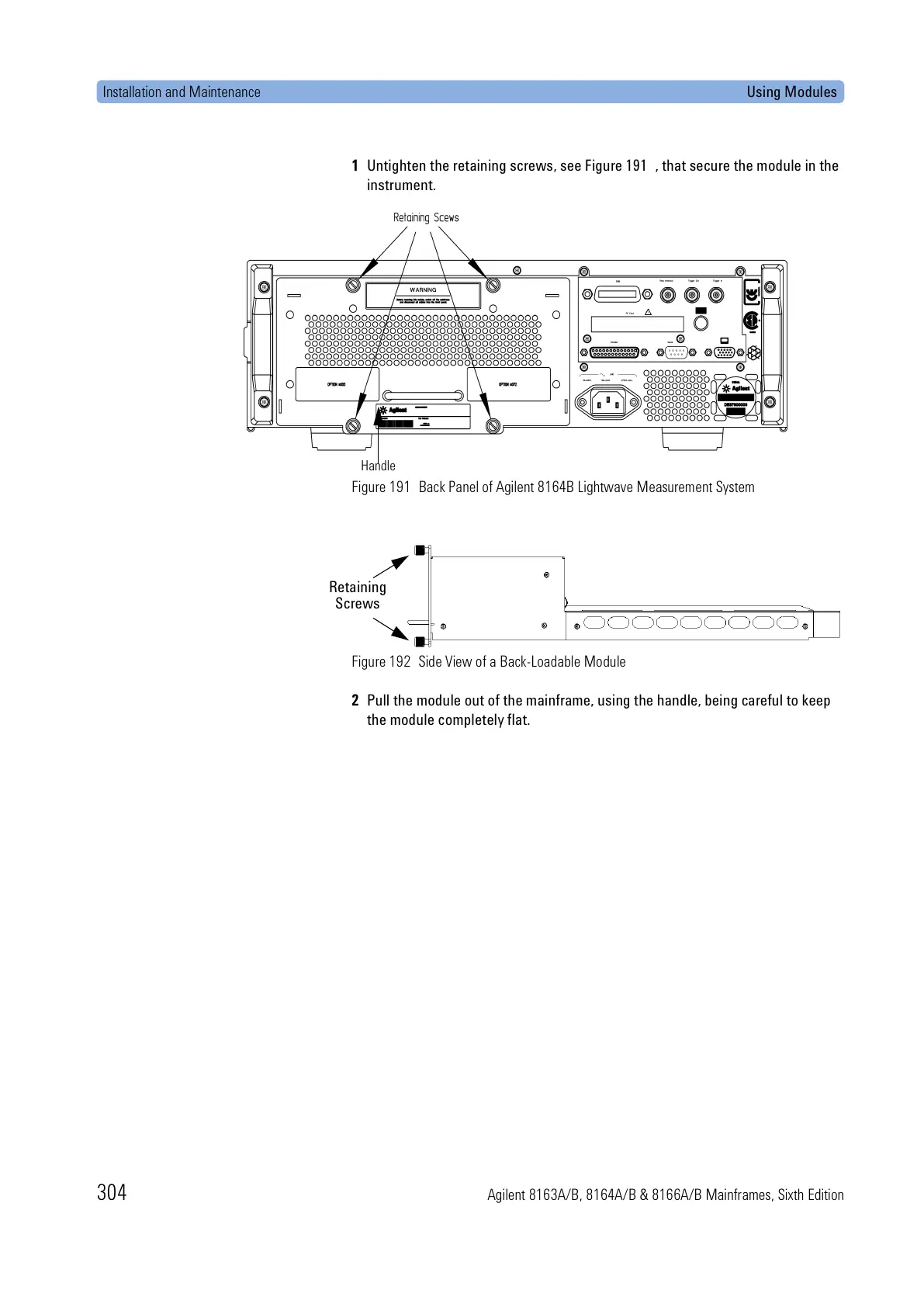

1 Untighten the retaining screws, see Figure 191 , that secure the module in the

instrument.

Figure 191 Back Panel of Agilent 8164B Lightwave Measurement System

Figure 192 Side View of a Back-Loadable Module

2 Pull the module out of the mainframe, using the handle, being careful to keep

the module completely flat.

Handle

Retaining

Screws
