Getting Started Laser Safety Information
34 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

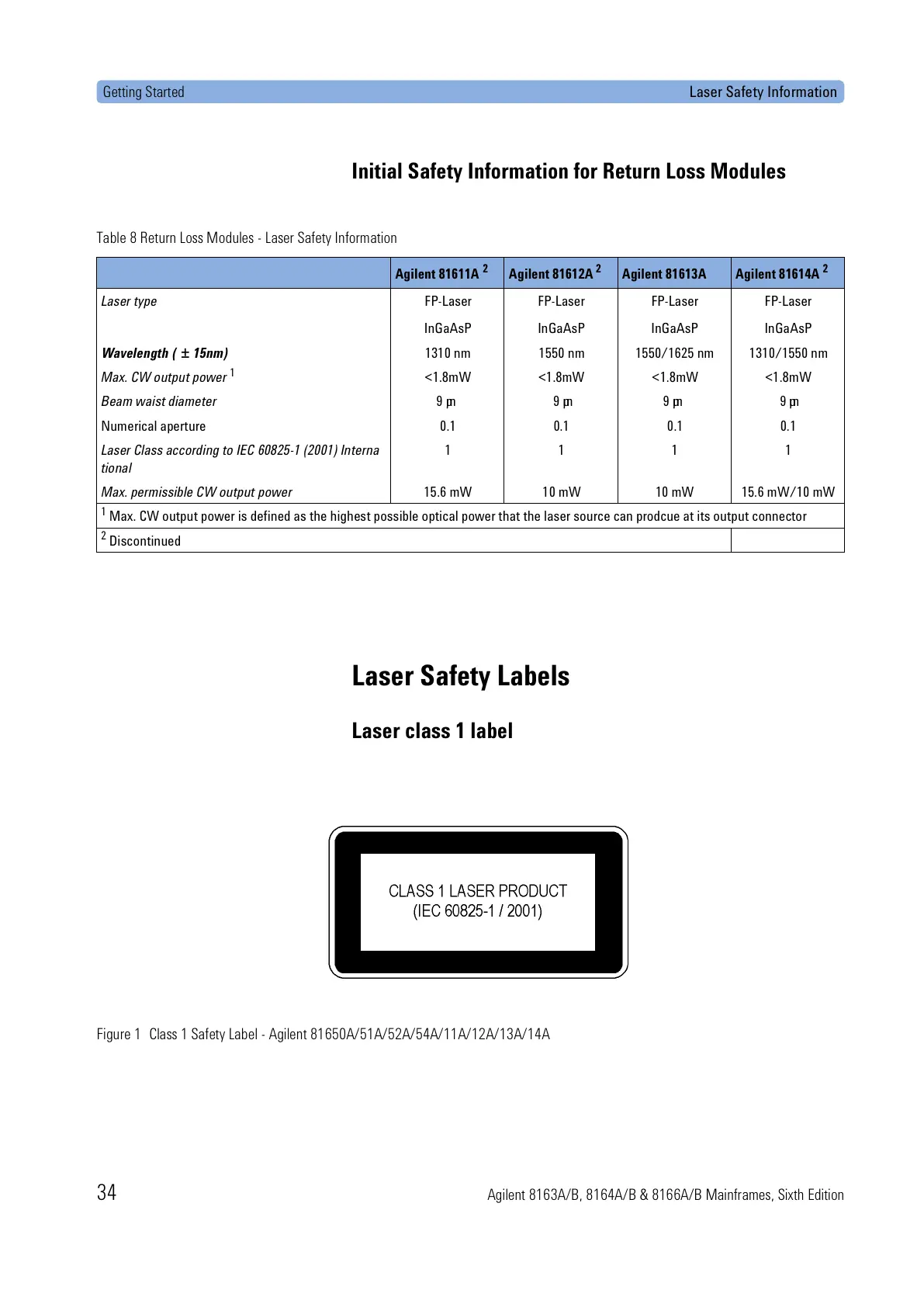

Initial Safety Information for Return Loss Modules
Laser Safety Labels
Laser class 1 label
Table 8 Return Loss Modules - Laser Safety Information
Agilent 81611A
2
Agilent 81612A
2
Agilent 81613A Agilent 81614A
2
Laser type FP-Laser
InGaAsP
FP-Laser
InGaAsP
FP-Laser
InGaAsP
FP-Laser
InGaAsP
Wavelength ( ± 15nm) 1310 nm 1550 nm 1550/1625 nm 1310/1550 nm
Max. CW output power
1
<1.8mW <1.8mW <1.8mW <1.8mW
Beam waist diameter 9 µm 9 µm 9 µm 9 µm
Numerical aperture 0.1 0.1 0.1 0.1
Laser Class according to IEC 60825-1 (2001) Interna
tional
1 1 1 1
Max. permissible CW output power 15.6 mW 10 mW 10 mW 15.6 mW/10 mW
1
Max. CW output power is defined as the highest possible optical power that the laser source can prodcue at its output connector
2
Discontinued
Figure 1 Class 1 Safety Label - Agilent 81650A/51A/52A/54A/11A/12A/13A/14A
